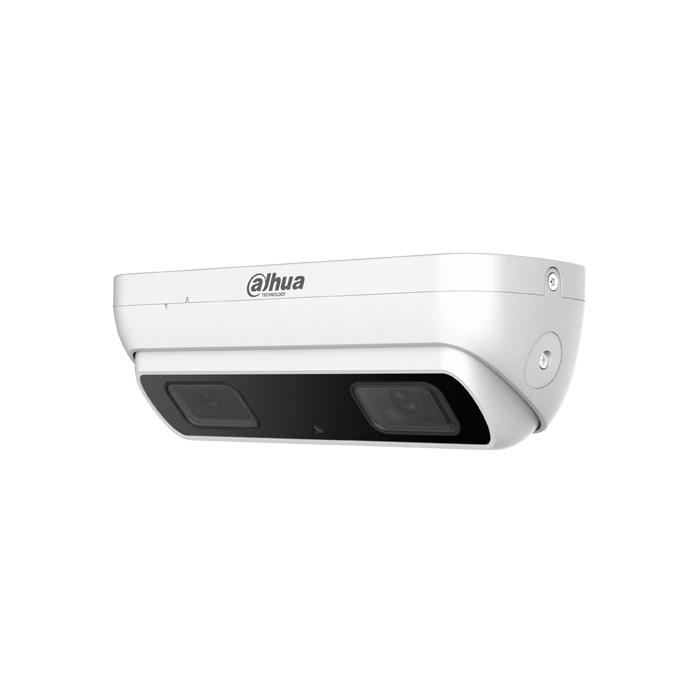

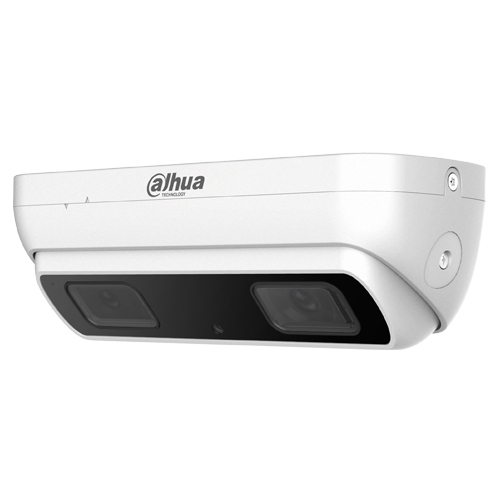

DAHUA (IPC-HDW8341X-3D) 3MP DUAL LENS KİŞİ SAYMA AL NETWORK KAMERA

Camera

Image Sensor

Two 1/2.8”3Megapixel progressive scan CMOS

Effective Pixels

2048(H)x1536(V)

RAM/ROM

512MB/4096MB

Scanning System

Progressive

Minimum Illumination

0.009Lux/F1.8 (Color,1/3s,30IRE)

0.08Lux/F1.8 (Color,1/30s,30IRE)

0Lux/F1.8(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 10m(33ft)

IR On/Off Control

Auto/ Manual

IR LEDs

1

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

2.8mm (3.6mm)

Max. Aperture

F1.8

Angle of View

H: 106° (80°), V:80° (58°)

Optical Zoom

N/A

Focus Control

Fixed

Close Focus Distance

0.6m (0.9m)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

45m(147ft)

18m(59ft)

9m(29ft)

4m(13ft)

3.6 mm

57m(187ft)

23m(75ft)

11m(36ft)

6m(19ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Tilt:-10°~70°;

Artificial Intelligence

People Counting

line crossing people counting, region people counting, Height filter, loitering filter

General Intelligence

Event Trigger

Motion detection, Video tampering, Scene changing,

Network disconnection, Ip address conflict, Illegal

access, Storage anomaly

General Intelligence

Heatmap

Video

Compression

H.265/H.264H/MJPEG(Sub Stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

3 Streams

Resolution

3MP(2048×1536)/ 1080P(1920×1080)/ 1.3M(1280x960)/ 720P(1280x720)/ D1(704×576/704x480) / VGA(640x480)/ CIF(352×288/342x240)

Frame Rate

Main Stream: 3MP (1~25fps)

Sub Stream 1: D1 (1 ~ 25/30fps)

Sub Stream 2: 6MP (1~7fps, For Debugging Only)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 192~ 10240Kbps

H.265: 80~ 6144Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / WDR(120dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

N/A

Smart IR

Support

Defog

N/A

Digital Zoom

16x

Flip

N/A

Mirror

N/A

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

G.711a/ G.711Mu/ AAC/ G.726

Network

Ethernet

RJ-45 (100/1000Base-T)

Protocol

HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;

FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;

NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;SNMP;TLS

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

1 port (For Adjustment Only)

Audio Interface

2/1 channel In/Out (RCA), Built-in Mic

RS485

N/A

Alarm

2 channel In: 5mA 5VDC

2 channel Out: 300mA 12VDC

Electrical

Power Supply

DC12V, PoE (IEEE 802.3af)(Class 0)

Power Consumption

< 12W

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Storage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

N/A

Construction

Casing

Metal

Dimensions

204mmx78mmx62mm (8.03"x3.07"x2.44")

Net Weight

0.8kg (1.76lb)

Gross Weight

1.09kg (2.40lb)
