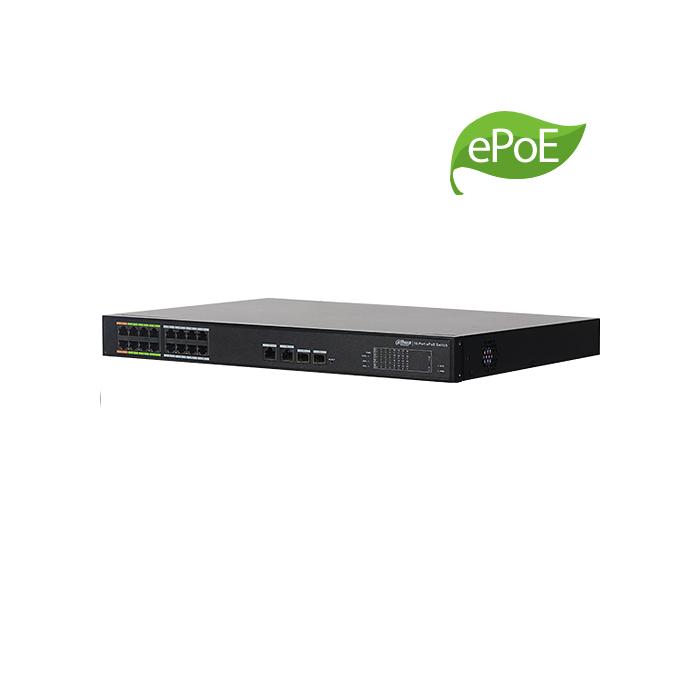

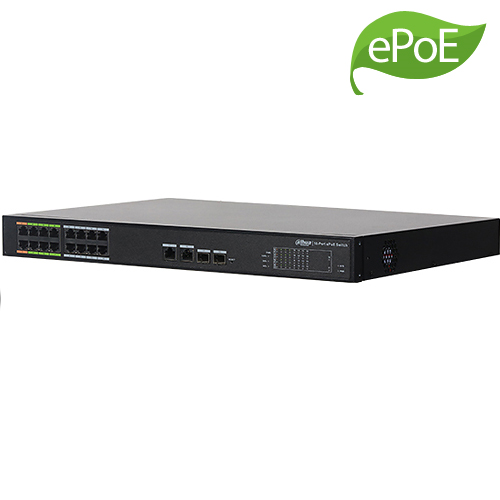

DAHUA (LR2218-16ET-240) 16 PORT POE(8 PORT E-POE) (8FE POE+8FE E-POE+2GE+2GE KOMBO 240W POE) SWITCH

Ürün Kodu : 1038
Marka : DAHUA

382.39 Dolar

TELEFONDA SİPARİŞ VER

0242 244 1 444

Tıklayın, telefonunuzu bırakın. Sizi arayalım.

TIKLA WHATSAPP İLE SİPARİŞ VER

05013552780

7x24 Whatsapp Üzerinden de Sipariş Verebilirsiniz.

SEPETE EKLE HEMEN AL

Siparişlerinizin aynı gün kargo teslimatı yapılır.

Telefonla Sipariş Hattı
0242 244 1 444

Ürün Açıklaması
Ödeme Seçenekleri
Müşteri Yorumları (0)
Teslimat İade

16 Port PoE(8 Port ePoE) Switch (8FE PoE + 8FE ePoE + 2GE + 2GE Kombo, Toplam 240W PoE )
İlk 8 Port ePoE(800 metre mesafeli),
Kalan 8 Port PoE
2*10/100/1000 Base-T,
2*1000 Base-X (Combo ports),
16*10/100 Base-T (PoE güç kaynağı)
Anahtarlama Kapasitesi: 8.8Gbps,
Paket İletme Hızı: 5.36Mbps
Paket Buffer: 2.75Mb,
Mac Tablosu Boyutu: 4K,
VLAN, Spanning Tree,
Port Aggregiation,
Mirroring,
DHCP,
Flow Control,
QoS
Çalışma Sıcaklığı: -10°C~55°C,
Nem Aralığı: 10%~90%
Yıldırım Koruması: Common Mod 4KV,
Differential Mod 2KV

LR2218-16ET-240

16-Port PoE Switch with 8-Port ePoE

> Supports long distance PoE transmission up to 800m with ePoE technology of Dahua
> Layer-two web managed ePoE switch
> Port 1-8 support three self-adaptive transmission modes which are IEEE, E100 and E10
> Port 1-8 support both twisted-pair transmission and coaxial cable transmission
> Support web management: port management, 802.1Q VLAN, STP/RSTP, LACP, 802.1X, QoS
> Support PoE management, Green PoE, Legacy Support
> Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards

Technical Speci?cation

Model

DH-LR2218-16ET-240

Ethernet Port

2*10/100/1000 Base-T

2*1000 Base-X (Combo ports)

16*10/100 Base-T (PoE power supply)

PoE Power Consumption

Port1 and port 2 support Hi-PoE 60W

Each power≤30W, Total≤240W

PoE Protocol

IEEE802.3af, IEEE802.3at, Hi-PoE

Switching Capacity

8.8Gbps

Packet Forwarding Rate

5.36Mpps

Packet Buffer Memory

2.75Mb

Application Humidity

10%~90%

Power

AC100-240V, 50/60Hz

Lightning Protection

Common Mode 4KV

Differential Mode 2KV

Working Temperature

?10°C~55°C

Weight

3.12kg

Dimension(W×D×H)

440mm x300mm x44mm

Transmission Performance:
ePoE Power Supply Specifications (CAT)
Cable (m)	Bandwidth (Mbps)	PoE Load Capacity (W)	Hi-PoE Load Capacity (W)	Working Mode
100	100	25.5	53	IEEE/E100
200	100	25.5	47	E100
300	100	25.5	32	E100
400	10	23	26	E10
500	10	20	20	E10
800	10	13	13	E10
ePoE switch power supply voltage 51V CAT5E/CAT6, max. DC resistance < 10Ω/100m
ePoE Power Supply Specifications (RG59 Coaxial Cable)
Cable (m)	Bandwidth (Mbps)	PoE Load Capacity (W)	Hi-PoE Load Capacity (W)	Working Mode
100	100	25.5	52	IEEE/E100
200	100	25.5	48	E100
300	100	25.5	30	E100
400	100	20	23	E100
500	10	16	16	E10
800	10	10	10	E10
1000	10	8	8	E10
ePoE switch power supply voltage 51V. RG-59, max. DC resistance < 5Ω/100m.

Service Characteristics

Model

DH-LR2218-16ET-240

System

Username / password: admin/User Define

IP Address :192.168.1.110/24

PoE Budget

240W

MAC Table

VLAN

802.1Q Standard VLAN

Spanning Tree

STP, RSTP

Port Aggregation

Static link aggregation, LACP

Mirroring

Support many-to-one port mirroring

DHCP

Support DHCP-Client

Long Distance Mode

Extend the maximum distance from 100m to 800m

Flow Control

Support half-duplex based on back pressure type control;

Support full duplex based on PAUSE frame

Security Features

Hardware supports IP+MAC binding based on port

Support IEEE802.1x port authentication

System Maintenance

one-key recovery of default

Support the updated packet upload

Support system logs

QoS

Support high and low priority, WRR

Support 802.1P, DSCP

Support priority according to protocol

Network Management

WEB(http and https protocol)

Support SNMP V1/V2C/V3

PoE Management

Support PoE power consumption, PoE on/off of IPC configura-tion, power down when exceeding the value of overload power

Support PoE event statics

Support Green PoE

Support Legacy Support
