4 Kanal H.265 NVR (1x6TB SATA) İzleme/Kayıt Bant Genişliği: 80Mbps/80Mbps, 4 Port PoE(Tak-Çalıştır) 8 MP'ye kadar çözünürlük, 1Kanal@8MP/4Kanal@1080p Kod Çözümleme(Decoding)
Çift Yönlü Konuşma, P2P 1 HDMI, 1 VGA, 2 USB, 1 RJ45 port(10/100Mbps)

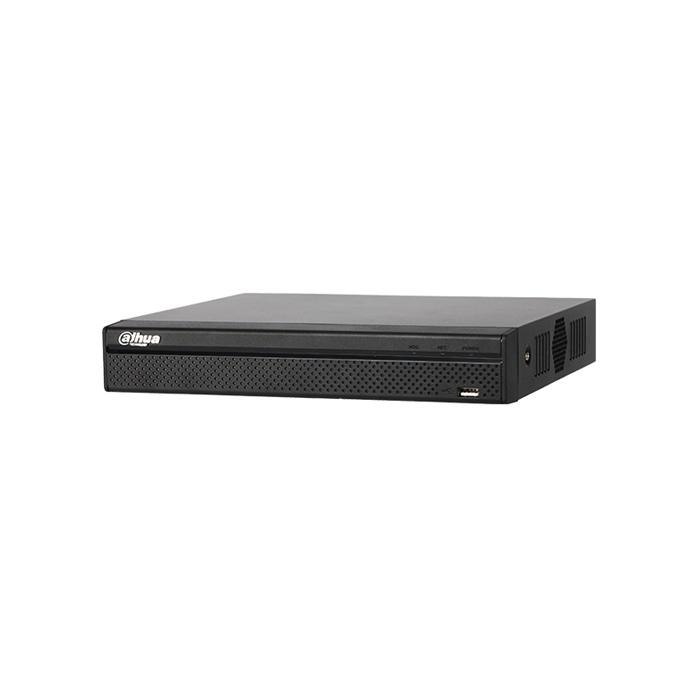

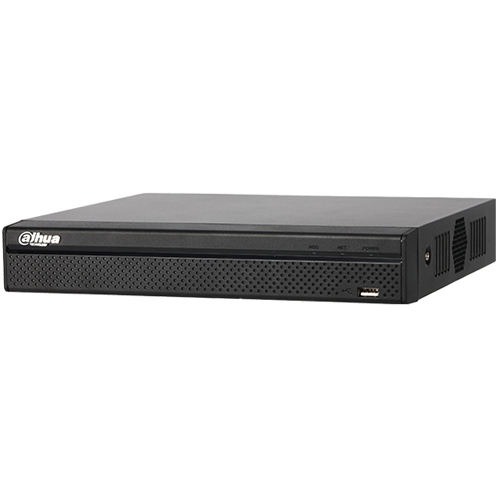

NVR2104HS-P-4KS2
4 Channel Compact 1U 4PoE Lite 4K H.265 Network Video Recorder
> H.265/H.264 codec decoding
> Max 80Mbps incoming bandwidth
> Up to 8Mp resolution preview&playback
> Up to 1ch@8MP/4ch@1080P decoding
> HDMI/VGA simultaneous video output
> Support IPC UPnP, 4PoE ports
System
Main Processor
Dual-core embedded processor
Operating System
Embedded LINUX
Audio and Video
IP Camera Input
4 Channel
Two-way Talk
1 Channel Input, 1 Channel Output, RCA
Display
Interface
1 HDMI, 1 VGA
Resolution
HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720
VGA: 1920×1080, 1280×1024, 1280×720
Decoding Capacity
1ch@8MP 30fps, 4ch@1080P 30fps
Multi-screen Display
1/4
OSD
Camera title, Time, Camera lock, Motion detection, Recording
Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 × 18),
and Tampering
Alarm input
N/A
Relay Output
N/A
Playback and Backup
Sync Playback
1/4
Search Mode
Time /Date, MD and Exact Search
(accurate to second)
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom
Backup Mode
USB Device/Network
Third-party Support
Third-party Support
Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more
Network
Interface
1 RJ-45 port (10/100Mbps)
PoE
4 ports (IEEE802.3at/af)
Network Function
HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search(Support Dahua IP camera, DVR, NVS and etc.), Easy4ip
Optical Fiber Interface
N/A
Max. User Access
128 users
Smart Phone
iPhone, iPad, Android
Interoperability
ONVIF 2.4, SDK, CGI
Storage
Internal HDD
1 SATA III Port, up to 6TB capacity for each HDD
HDD Mode
Single
eSATA
N/A
Auxiliary Interface
USB
2 ports (1 Rear USB2.0, 1 Front USB2.0)
RS232
N/A
RS485
N/A
Electrical
Power Supply
Single, DC48V/1.25A
Power Consumption
NVR: <5.3W (without HDD)
PoE: Max 25.5w for single port, 50w in total
Environmental
Operating Conditions
-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions
-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction
Dimensions(W×D×H)
Compact 1U, 260mm×224.9mm×47.6mm
(10.2" x 8.9" x 1.9")
Net Weight
0.8kg (1.76 lb) (without HDD)
Gross Weight
1.6kg(3.53 lb)(without HDD)
Certifications
CE
EN55032, EN55024, EN50130-4, EN60950-1
FCC
Part 15 Subpart B, ANSI C63.4-2014
UL
UL60950-1
