SFP/SFP+ Modules and Cabling
Ubiquiti Networks offers a variety of UFiber™ modules and single-mode fiber cabling for your new installs and existing infrastructure upgrades.
Models: FC-SM-100, FC-SM-200, FC-SM-300, Fiber Cable, UDC-1, UDC-2, UDC-3, UF-MM-10G, UF-MM-1G, UF-RJ45-10G, UF-RJ45-1G, UF-SM-10G, UF-SM-10G-S, UF-SM-1G-S, UOC-0.5, UOC-1, UOC-2, UOC-3, UOC-5

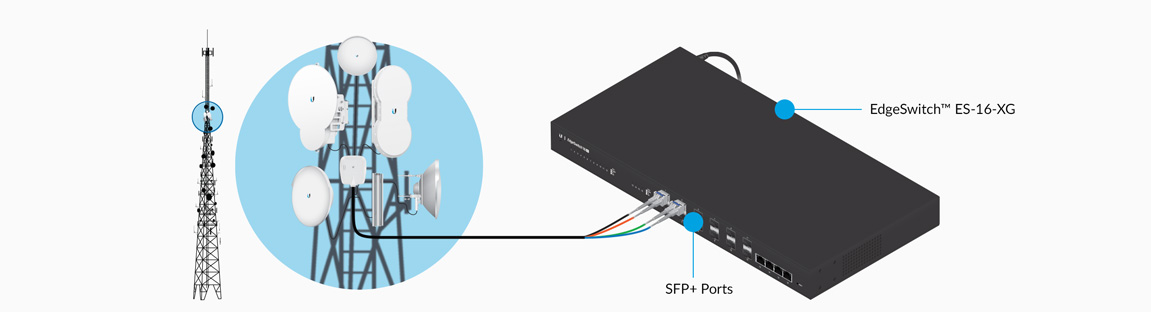

Outdoor Fiber Installations
For long-distance runs of 300+ meters, use UFiber 1G or 10G single-mode modules and BiDi models for maximum reuse of existing infrastructure. For shorter runs, use UFiber 1G or 10G multi-mode modules for reduced cost.

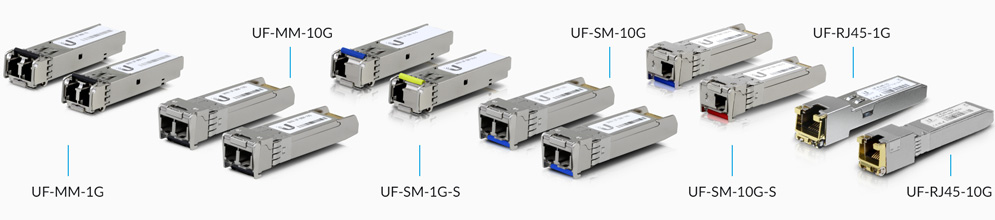

Fiber Modules
UFiber modules are available as single-mode or multi-mode models to suit your fiber connectivity applications.

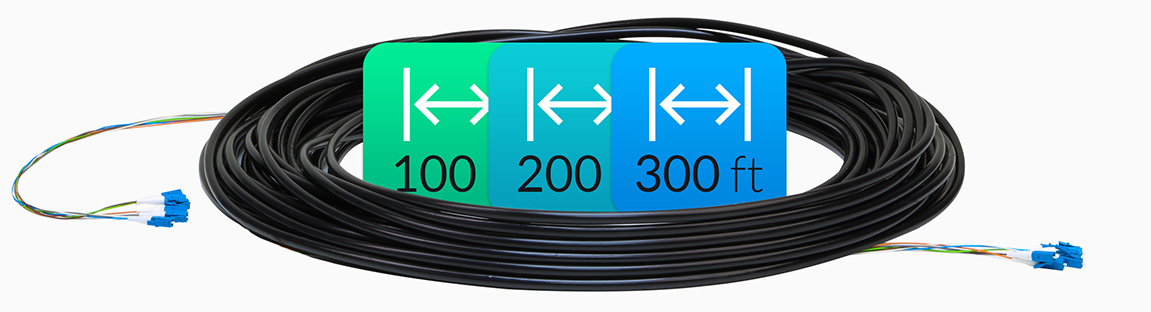

Single-Mode LC FiberCable
Use single-mode LC FiberCable™ to build your outdoor fiber network. Lightweight and flexible, FiberCable is ideal for tower installs of our outdoor routing and switching products, such as EdgePoint™ devices. Available in 100, 200, and 300 ft lengths.

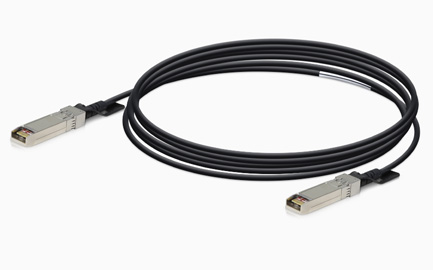

10G SFP+ Direct Attach Passive Copper Cable
The SFP+ direct attach passive copper cables are ideal for indoor telecommunications and data networks using our routing and switching products, such as the EdgeRouter, EdgeSwitch, and UniFi Switch. Available in lengths of 1, 2 and 3 meters.

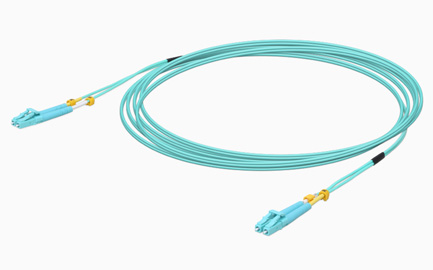

10G Multi-Mode ODN Cable
The 10G multi-mode fiber patch cables are ideal for indoor telecommunications and data networks using our routing and switching products, such as the EdgeRouter, EdgeSwitch, and UniFi Switch. Available in 0.5, 1, 2, 3, and 5 meter lengths.
Model Comparison
| |

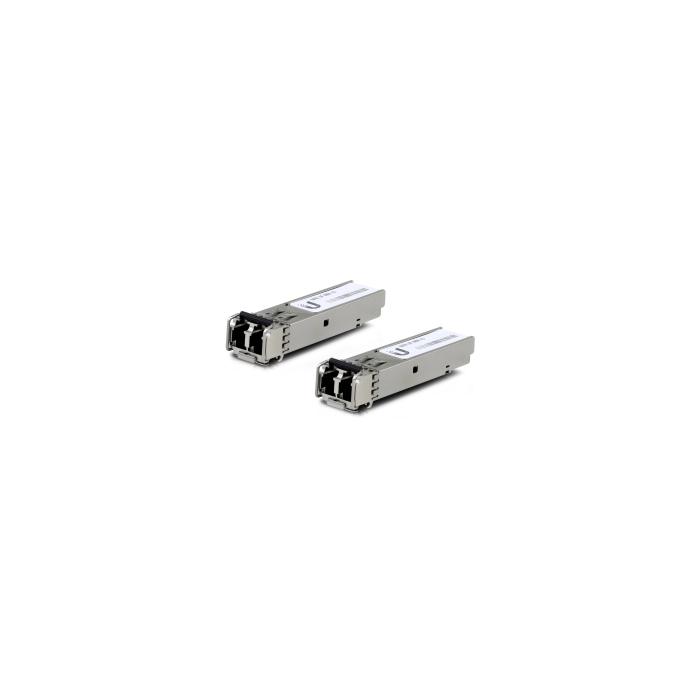

UF-MM-1G
|
UF-MM-10G
|
UF-SM-1G-S
|
UF-SM-10G
|
UF-SM-10G-S
|
|
Supported Media
|
Multi-Mode Fiber
|
Multi-Mode Fiber
|
Single-Mode Fiber
|
Single-Mode Fiber
|
Single-Mode Fiber
|
|
Connector Type
|
(2) LC
|
(2) LC
|
(1) LC
|
(2) LC
|
(1) LC
|
|
BiDi
|
N/A
|
N/A
|
?
|
N/A
|
?
|
|
TX Wavelength
|
850 nm
|
850 nm
|
Blue
1310 nm
Yellow
1550 nm
|
1310 nm
|
Blue
1270 nm
Red
1330 nm
|
|
RX Wavelength
|
850 nm
|
850 nm
|
Blue
1550 nm
Yellow
1310 nm
|
1310 nm
|
Blue
1330 nm
Red
1270 nm
|
|
Data Rate
|
1.25 Gbps SFP
|
10 Gbps SFP+
|
1.25 Gbps SFP
|
10 Gbps SFP+
|
10 Gbps SFP+
|
|
Cable Distance
|
550 m
|
300 m
|
3 km
|
10 km
|
10 km
|
|
Pack Options
|
2-Pack, 20-Pack
|
2-Pack, 20-Pack
|
1-Pair, 10-Pairs
|
2-Pack, 20-Pack
|
1-Pair, 10-Pairs
|
Model Comparison
| |
UF-RJ45-1G
|
UF-RJ45-10G
|
|
Supported Media
|
Copper
|
Copper
|
|
Connector Type
|
RJ45
|
RJ45
|
|
BiDi
|
N/A
|
N/A
|
|
TX Wavelength
|
N/A
|
N/A
|
|
RX Wavelength
|
N/A
|
N/A
|
|
Data Rate
|
10/100/1000 Mbps
|
1/10 Gbps
|
|
Cable Distance
|
100 m
|
1 Gbps
(Cat 5e)
100 m
10 Gbps
(Cat 6A)
30 m
|
|
Pack Options
|
20-Pack
|
1-Pack
|
