Description |

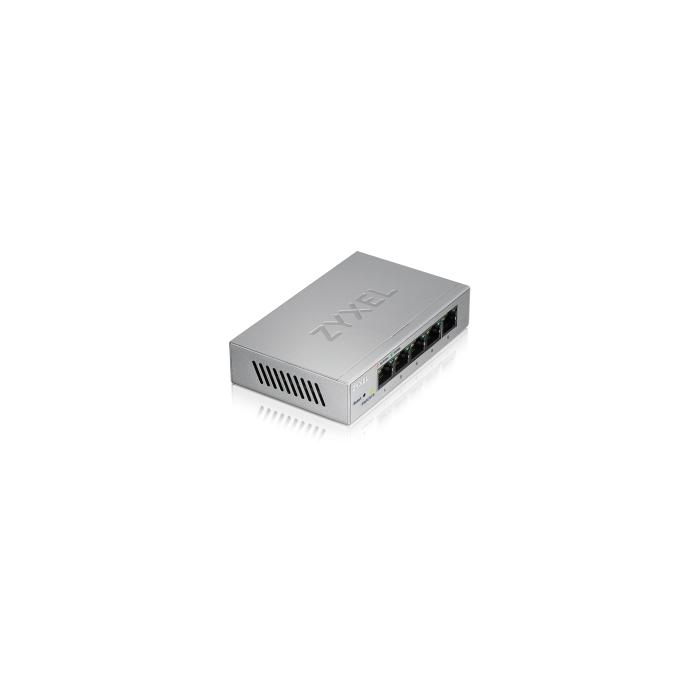

5-Port Web Managed Gigabit Switch |
8-Port Web Managed Gigabit Switch |
5-Port Web Managed PoE Gigabit Switch |
8-Port Web Managed PoE Gigabit Switch |
10/100 Mbps Ethernet Ports |
- |
- |
- |
- |
10/100/1000 Mbps Ethernet Ports |
5 |
8 |
5 |
8 |
10/100/1000 Mbps Ethernet PoE+ Ports |
- |
- |
4 |
4 |
Loop Detection /Prevention |
Yes |
Yes |
Yes |
Yes |
IGMP Snooping v1/v2/and v3 Compatitble |
Yes |
Yes |
Yes |
Yes |
Power Saving by Detecting Link Status & Cable Length |
Yes |
Yes |
Yes |
Yes |
Maximum power consumption (watt) |
2.67 |
4.37 |
72 |
72 |
Item dimensions (WxDxH) |
121x 75 x 26mm
(4.8” x 3.0” x 1.0”) |
155x 85 x 26 mm
(6.1” x 3.0” x 1.0”) |
193 x 84 x 26 mm
(7.6" x 3.3" x 1.0" ) |
240 x 105 x 26 mm
(9.5" x 4.1" x 1.0") |
Packing dimensions (WxDxH) |
127 x 82 x 95 mm
(5.0” x 3.2” x 3.7”) |
161 x 90 x 95 mm
(6.3” x 3.5” x3.7”) |
210 x 132 x 78 mm
(8.3" x 5.2" x 3.1") |
256 x 132 x 78 mm
(10.1" x 5.2" x 3.1") |
Operating |
Temperature
0°C to 40°C/32°F to 104°F
Humidity
10% to 90% (non-condensing) |
Temperature
0°C to 40°C/32°F to 104°F
Humidity
10% to 90% (non-condensing) |
Temperature
0°C to 40°C/32°F to 104°F
Humidity
10% to 90% (non-condensing) |
Temperature
0°C to 40°C/32°F to 104°F
Humidity
10% to 90% (non-condensing) |
Storage |
Temperature
-40°C to 70°C/-40°F to 158°F
Humidity
10% to 90% (non-condensing) |
Temperature
-40°C to 70°C/-40°F to 158°F
Humidity
10% to 90% (non-condensing) |
Temperature
-40°C to 70°C/-40°F to 158°F
Humidity
10% to 90% (non-condensing) |
Temperature
-40°C to 70°C/-40°F to 158°F
Humidity
10% to 90% (non-condensing) |
