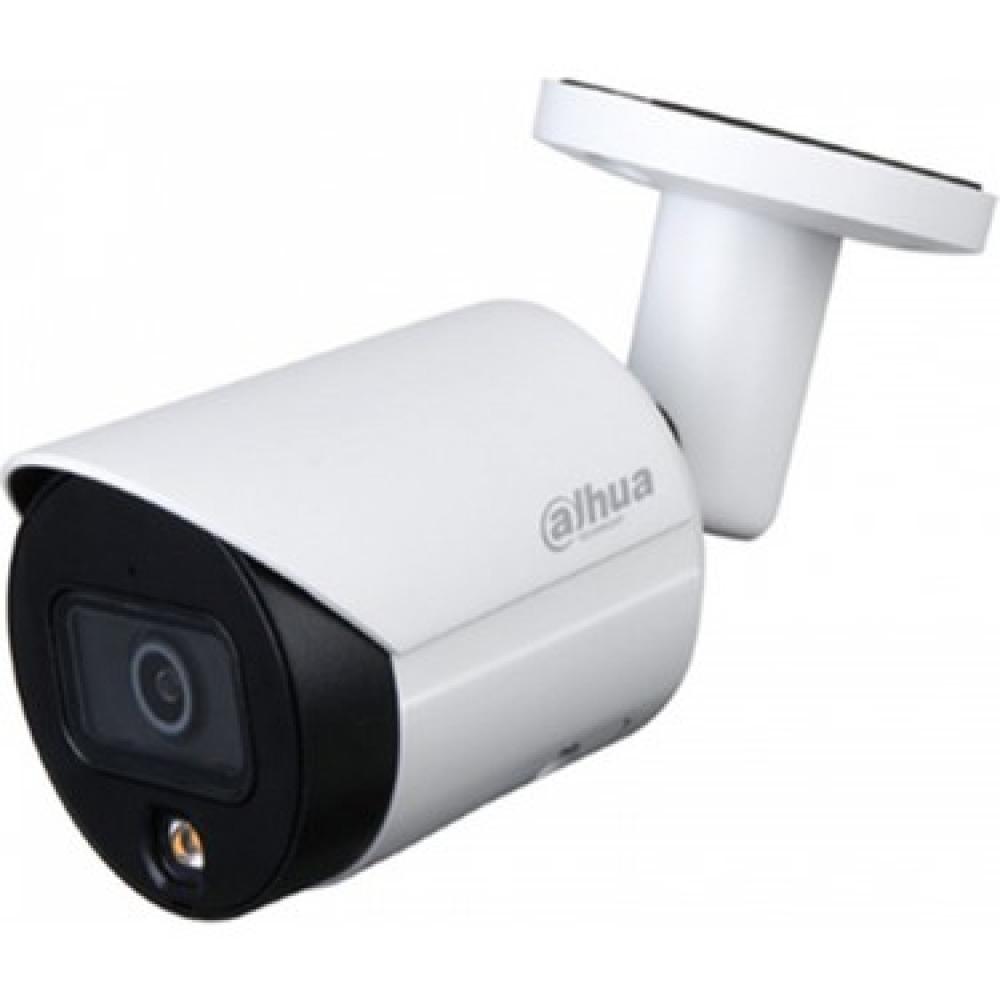

2 MP Full Color H.265+ Bullet Kamera(30m Tamamlayıcı ışık))
1 / 2.8 " CMOS, 3.6mm Sabit Lens, 0.0017 Lüx Renkli
BLC/HLC/WDR(120dB), 3DNR, AWB, AGC, ICR, SD Kart Desteği(256GB)
Tripwire(Sanal Sınır),Intrusion(Alan İhlali) Analiz
IP67, PoE, 25fps@2MP(1920x1080), Dahili Mikrofon,Metal Kasa
IPC-HFW2239S-SA-LED
2MP Lite Full-color Fixed-focal Bullet Network Camera
> 2MP, 1/2.8" CMOS image sensor, low illuminance, high image definition
> Outputs max. 2MP (1920 × 1080) @25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate
> Built-in warm lights, max. illumination distance: 30 m
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking,
> Intelligent detection: Intrusion, tripwire
> Abnormality detection: Motion detection, video tampering, scene
> Supports max. 256 GB Micro SD card and built-in Mic
> 12V DC/PoE power supply
> IP67 protection
|
Camera
|
|
Image Sensor
|
1/2.8” 2Megapixel progressive CMOS
|
|
Max. Resolution
|
1920 (H) × 1080 (V)
|
|
ROM
|
128 MB
|
|
RAM
|
128 MB
|
|
Scanning System
|
Progressive
|
|
Electronic Shutter Speed
|
Auto/Manual 1/3 s–1/100,000 s
|
|
Minimum Illumination
|
0.0017 Lux@F1.0
|
|
S/N Ratio
|
> 56 dB
|
|
Illumination Distance
|
30 m (98.4 ft)
|
|
Illuminator On/Off Control
|
Auto/Manual
|
|
Illuminator Number
|
1 (Warm light)
|
|
Pan/Tilt/Rotation Range
|
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
|
|
Lens
|
|
Lens Type
|
Fixed-focal
|
|
Mount Type
|
M12
|
|
Focal Length
|
2.8 mm
3.6 mm
|
|
Max. Aperture
|
2.8 mm: F1.0
3.6 mm: F1.0
|
|
Field of View
|
2.8 mm: Horizontal 107° × Vertical 55° × Diagonal 127°
3.6 mm: Horizontal 91° × Vertical 47° × Diagonal 109°
|
|
Iris Type
|
Fixed
|
|
Close Focus Distance
|
2.8 mm: 0.9 m (3.0 ft)
3.6 mm: 1.3 m (4.3 ft)
|
|
DORI Distance
|
Lens
|
Detect
|
Observe
|
Recognize
|
Identify
|
|
2.8mm
|
38.6m
(126.6 ft)
|
15.4m
(50.5 ft)
|
7.7 m
(25.3 ft)
|
3.9 m
(12.8 ft)
|
|
3.6mm
|
49.7m
(163.1 ft)
|
65.3m
(108.6 ft)
|
32.5m
(54.5 ft)
|
18.0m
(27.2 ft)
|
|
Smart event
|
|
IVS
|
Tripwire; intrusion
|
|
Video
|
|
Video Compression
|
H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
|
|
Smart Codec
|
Smart H.265+/ Smart H.264+
|
|
Video Frame Rate
|
Main stream:
1920 × 1080 (1 fps-25/30 fps)
Sub stream:
704 × 576 (1 fps-25 fps)
704 × 480 (1 fps-30 fps)
|
|
Stream Capability
|
2 streams
|
|
Resolution
|
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 ×720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
|
|
Bit Rate Control
|
CBR/VBR
|
|
Video Bit Rate
|
H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps
|
|
Day/Night
|
Color/B/W
|
|
BLC
|
Yes
|
|
HLC
|
Yes
|
|
WDR
|
120 dB
|
|
White Balance
|
Auto/natural/street lamp/outdoor/manual/regional custom
|
|
Gain Control
|
Auto/Manual
|
|
Noise Reduction
|
3D NR
|
|
Motion Detection
|
OFF/ON (4 areas, rectangular)
|
|
Region of Interest(RoI)
|
Yes (4 areas)
|
|
Smart Illumination
|
Yes
|
|
Image Rotation
|
0°/90°/180°/270° (Supports 90°/270° with 1080p resolution and lower)
|
|
Mirror
|
Yes
|
|
Privacy Masking
|
4 areas
|
|
Audio
|
|
Built-in MIC
|
Yes
|
|
Audio Compression
|
G.711A; G.711Mu; G.726
|
|
Alarm
|
|
Alarm Event
|
No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception
|
|
Network
|
|
Network
|
RJ-45 (10/100 Base-T)
|
|
SDK and API
|
Yes
|
|
Cyber Security
|
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
|
|
Protocol
|
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
|
|
Interoperability
|
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
|
|
User/Host
|
20 (Total bandwidth: 72 M.)
|
|
Storage
|
Dahua Cloud; FTP; Micro SD card (support max. 256 G); NAS; SFTP
|
|
Browser
|
IE
Chrome
Firefox
|
|
Management Software
|
Smart PSS; DSS; DMSS
|
|
Mobile Phone
|
IOS; Android
|
|
Certification
|
|
Certifications
|
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
|
|
Power
|
|
Power Supply
|
12V DC/PoE (802.3af)
|
|
Power Consumption
|
< 6.0W
|
|
Environment
|
|
Operating Conditions
|
-40°C to +60°C (-40°F to +140°F)/less than ≤ 95% RH
|
|
Storage Temperature
|
-40°C to +60°C (-40°F to +140°F)
|
|
Protection Grade
|
IP67
|
|
Structure
|
|
Casing
|
metal
|
|
Dimensions
|
166.2 mm × Φ70 mm (6.5" × Φ2.8")
|
|
Net Weight
|
0.473 kg (1.0 lb)
|
|
Gross Weight
|
0.574 kg (1.3 lb)
|
