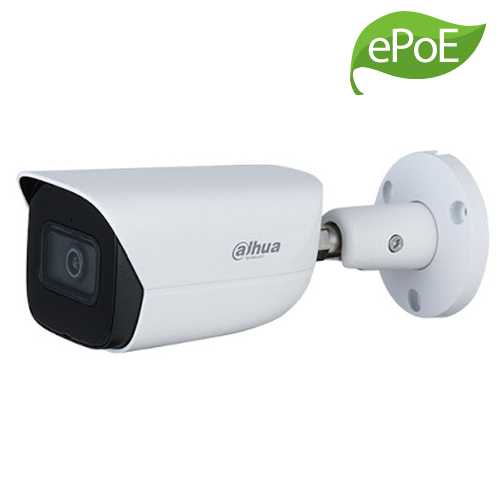

2 MP H.265+ AI IR Bullet Starlight Kamera(80m IR)
1 / 2.8 " CMOS, 3.6mm Sabit Lens, 0.002 Lüx Renkli, ePoE destekli(800 metre mesafeli)
BLC/HLC/WDR(120dB), 3DNR, AWB, AGC, ICR, Defog, SD-Kart Desteği(256GB)
Yapay Zeka: Yüz Yakalama
Çevre Koruması: Tripwire(Sanal Sınır İhlali), Intrusion(Alan İhlali)-İnsan ve Araç olarak sınıflandırma
Kişi Sayma: Çizgisel Kişi Sayma, Bölgesel Kişi Sayma, Kuyruk Sayma-4 farklı Alan Algılama
Kayıp/Terkedilmiş Nesne Algılama, Isı Haritası, Hızlı Hareket/Gezinme/Park/Kalabalık Toplanması Algılama
IP67, IK10, PoE, 25fps@1080p, Alarm Giriş/Çıkış: 1/1, Ses Giriş/Çıkış: 1/1, Metal Kasa
> 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS
> H.265 & H.264 triple-stream encoding
> 25/30 fps@1080P (1920 × 1080)
> WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
> 2.8 mm fixed lens (3.6 mm, 6.0 mm, 8.0 mm, 12.0 mm optional)
> 1/1 Alarm in/out, 1/1 audio in/out
> Max. IR LEDs Length 80 m
> Micro SD memory, IP67,IK10
| Camera |
| Image Sensor |
1/2.8” 2Megapixel progressive scan STARVIS™ CMOS |
| Effective Pixels |
1920 (H) × 1080 (V) |
| RAM/ROM |
512 MB/128 MB |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
Auto/Manual, 1/3 s–1/100000 s |
| Minimum Illumination |
0.002 Lux@F1.6 |
| IR Distance |
Distance up to 80 m (262 ft) |
| IR On/Off Control |
Auto/Manual |
| IR LEDs |
4 |
| Lens |
| Lens Type |
Fixed-focal |
| Mount Type |
Board-in |
| Focal Length |
2.8 mm, 3.6 mm, 6.0 mm, 8.0 mm, 12.0 mm |
| Max. Aperture |
F1.6 (2.8 mm–8.0 mm), F2.0 (12.0 mm) |
| Angle of View |
H: 106°, V: 57°/H: 87°, V: 46°/H: 53°, V: 30°/
H: 41°, V: 23°/H: 26°, V: 14°
|
| Aperture Type |
Fixed |
| Close Focus Distance |
0.6 m (1.97 ft)/1.2 m (3.94 ft)/2.5 m (8.20 ft)/
4 m (13.12 ft)/8.6 m (28.22 ft)
|
| DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
| 2.8mm |
39m(128ft) |
15m(49ft) |
8m(26ft) |
4m(13ft) |
| 3.6mm |
55m(180ft) |
22m(72ft) |
11m(36ft) |
6m(20ft) |
| 6mm |
83m(272ft) |
33m(108ft) |
17m(56ft) |
8m(26ft) |
| 8mm |
110m(361ft) |
44m(144ft) |
22m(72ft) |
11m(36ft) |
| 12mm |
172m(564ft) |
69m(226ft) |
35m(115ft) |
17m(56ft) |
| Pan/Tilt/Rotation |
| Pan/Tilt/Rotation Range |
Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360° |
| Artificial Intelligence |
| Face Detection |
Support face image capture |
| Perimeter Protection |
Tripwire, intrusion (Recognition of vehicle and people), fast moving, loitering detection, parking detection and people gathering |
| People Counting |
Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection |
| General Intelligence |
| Event Trigger |
Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access, Storage anomaly |
| General Intelligence |
Object Abandoned/Missing |
| Heat Map |
Yes |
| Video |
| Compression |
H.265,H.264,H.264B,H.264H,
MJPEG (sub stream)
|
| Smart Codec |
Yes |
| Streaming Capability |
3 Streams |
| Resolution |
1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240) |
| Frame Rate |
Main Stream: 1080P (1 fps–25/30 fps) |
| Sub Stream: D1 (1 fps–25/30 fps) |
| Third Stream: 1080P (1 fps–6 fps) |
| Bit Rate Control |
CBR/VBR |
| Bit Rate |
H.264: 32 Kbps–8192 Kbps
H.265: 19 Kbps–7424 Kbps
|
| Day/Night |
Auto(ICR)/Color/ B/W |
| BLC Mode |
BLC/HLC/WDR (120 dB) |
| White Balance |
Auto/Natural/Street Lamp/Outdoor/Manual |
| Gain Control |
Auto/Manual |
| Noise Reduction |
3D DNR |
| Motion Detection |
Off/On (4 Zone, Rectangle) |
| Region of Interest |
Off/On (4 Zone) |
| Electronic Image Stabilization (EIS) |
N/A |
| Smart IR |
Yes |
| Defog |
Yes |
| Flip |
0°/90°/180°/270° |
| Mirror |
Off/On |
| Privacy Masking |
Off/On (4 Area, Rectangle) |
| Audio |
| Compression |
G.711a, G.711Mu, G.726, AAC, G.723 |
| Network |
| Ethernet |
RJ-45 (10/100 Base-T) |
| Protocol |
IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP |
| Interoperability |
ONVIF (Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P |
| Streaming Method |
Unicast/Multicast |
| Max. User Access |
20 Users |
| Edge Storage |
NAS;FTP;SFTP
Micro SD card 256 GB
|
| Web Viewer |
IE (versions newer than IE8), Chrome,
Firefox, Safari (versions newer than Safari 12)
|
| Management Software |
Smart PSS, DSS, DMSS |
| Smart Phone |
iOS, Android |
| Certifications |
| Certifications |
CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
|
| Interface |
| Audio Interface |
1/1 channel In/Out |
| RS485 |
N/A |
| Alarm |
1 channel In: 5mA 5V DC
1 channel Out: 300mA 12V DC
|
| Electrical |
| Power Supply |
DC 12V (±30%), PoE (802.3af) (Class 0) |
| Power Consumption |
<8.7W |
| Environmental |
| Operating Conditions |
-30° C to +60° C (-22° F to +140° F)/Less than 95% RH |
| Storage Conditions |
-30° C to +60° C (-22° F to +140° F) |
| Ingress Protection |
IP67 |
| Vandal Resistance |
IK10 |
| Construction |
| Casing |
Metal |
| Dimensions |
244.1 mm × 79.0 mm × 75.9 mm (9.61” × 3.11” × 2.99”) |
| Net Weight |
0.815 kg (1.80 lb) |
| Gross Weight |
1.08 kg (2.38 lb) |
