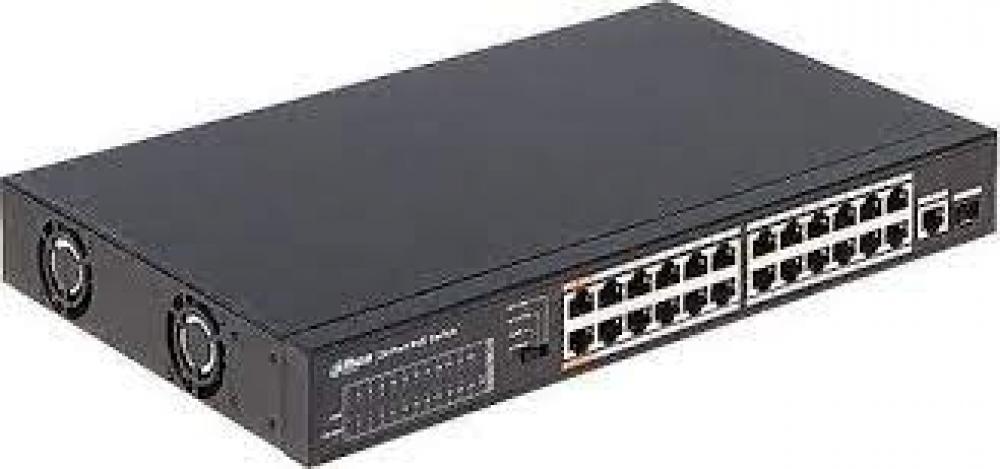

PFS3125-24ET-190
24 Port PoE Switch (24FE PoE + 1GE Kombo + 1GE SFP Kombo, Toplam 190W PoE )
1*10/100/1000 Base-T (Kombo),
1*1000 Base-X (Kombo),
24*10/100 Base-T (PoE güç kaynağı)
Anahtarlama Kapasitesi: 6.8Gbps,
Paket İletme Hızı: 5.06Mbps,
Paket Buffer:4Mb,
Mac Tablosu Boyutu: 4K
Çalışma Sıcaklığı: 0°C~45°C,
Nem Aralığı: 10%~90%
24-Port FE PoE+ 1-Port Gigabit Combo PoE Switch
> Compliant IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x standards
> Supports IEEE802.3af, IEEE802.3at, Hi-PoE standards
> Supports normal working mode, port isolation (VLAN) mode, monitoring mode, network extend mode.
> Supports Store-and-Forward
> 24*10/100Mbps ports, 1*Gigabit Combo port, support port auto flipping (Auto MDI / MDIX)
> Port 1-2 support the maximum power of 60W, PoE output total power up to 190W
> Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
> 4K entry MAC address table with auto-learning and auto-aging
> LED indicators for monitoring power, link and activity
|
Technical Speci?cation
|
|
Model
|
DH-PFS3125-24ET-190
|
|
Standards
|
IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3z,IEEE802.3x, IEEE802.3af, IEEE802.3at, Hi-PoE
|
|
Interface
|
24 x 10/100Mbps RJ45
1 x Gigabit Combo (RJ45/SFP)
|
|
Transfer Method
|
Store-and-Forward
|
|
Switching Capacity
|
6.8Gbps
|
|
Packet Forwarding Rate
|
5.06Mbps
|
|
Packet Buffer
|
4Mbit
|
|
PoE Ports(RJ45)
|
Port 1/2 : Hi-PoE/PoE+/PoE;
Port 1-24 : PoE+/PoE
|
|
Power Pin Assignment
|
1 to 2 port: 1/2/4/5 (+), 3/6/7/8 (-)
Other PoE port: 4/5 (+), 7/8 (-)
|
|
PoE Budget
|
190W
|
|
Mode
|
Default mode
|
All ports can communicate with each other
|
|
Isolation mode
|
PoE port cannot communicate with each other, but can communicate with the uplink Combo port
|
|
CCTV mode
|
1 to 8 ports support port priority, optimize port cache, switch all ports can communicate with each other
|
|
Extender mode
|
1 to 8 port rate down to 10Mbps, the farthest transmission distance of up to 250 meters, all ports can communicate with each other
|
|
Indicators
|
Per Device
|
Power: Green MAX : Red
|
|
Per Port
|
Link/Act: Green PoE: Yellow
|
|
Power Supply
|
AC 100V~240V 50/60HZ
|
|
Dimensions (W × D × H)
|
340*200*43 mm (13” metal case)
|
|
Environment
|
Operating Temperature: 0°C ~ 45°C
Storage Temperature: -40°C ~ 70°C
Operating Humidity: 10%~90% RH No condensation
Storage humidity: 5%~90% RH No condensation
|
