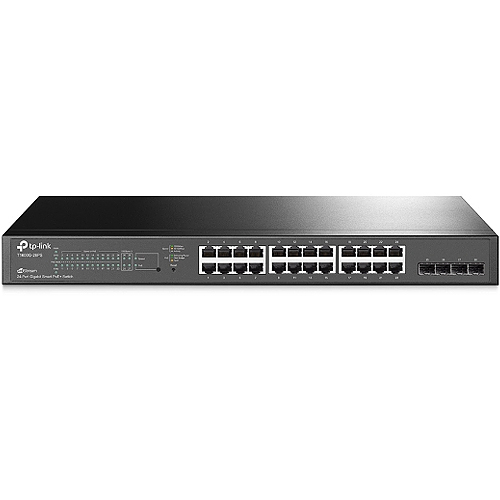

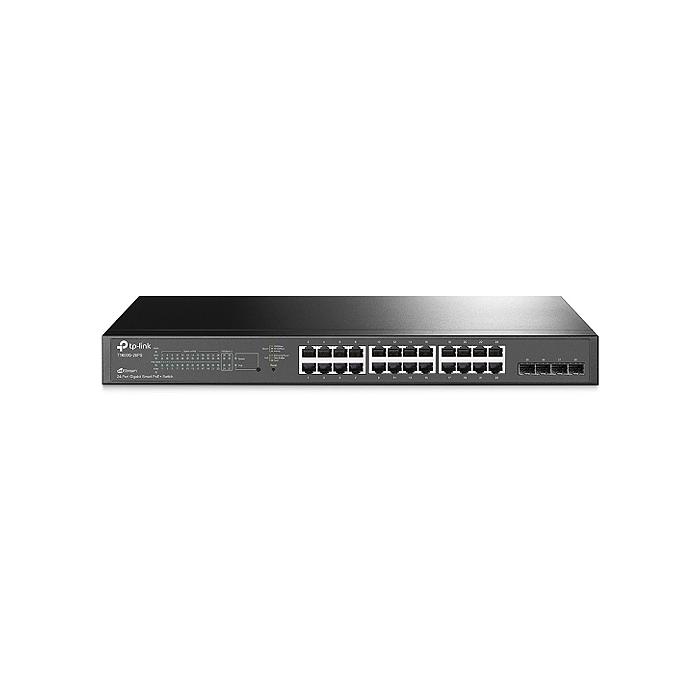

TP-LINK (T1600G-28PS) 28 PORT 24x 10/100/1000 POE 4xSFP YÖNETİLEBİLİR SWITCH-384W

Ürün Kodu : 1063
Marka : TP-LINK
249.60 Dolar

TELEFONDA SİPARİŞ VER

0242 244 1 444

Tıklayın, telefonunuzu bırakın. Sizi arayalım.



  • Ürün Açıklaması
  • Ödeme Seçenekleri
  • Müşteri Yorumları (0)
  • Teslimat İade

JetStream 24-Port Gigabit Smart PoE+ Switch with 4 SFP Slots

  • Supports 24 802.3at/af-compliant PoE+ ports with a total power supply of 192W
  • L2+ Feature——Static Routing, helps route internal traffic for more efficient use of network resources
  • IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X and Radius Authentication provide you robust security strategies
  • L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
  • IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery
  • WEB/CLI managed modes, SNMP, RMON and Dual Image bring abundant management features

Overview

TP-Link’s brand new JetStream T1600G-28PS provides huge upgrade comparing with previous versions. New Web UI design features better operating experience. The switch provides 24 10/100/1000Mbps RJ45 Ports which support 802.3at/af-compliant PoE, with a total PoE power supply up to 192W, powerful and ­flexible enough for users to deploy wireless access points or IP-based network surveillance cameras. Small and medium sized businesses can get cost-effective networking solutions without sacrificing enhanced usability and strong performance because of the integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and Static Routing.





IEEE 802.3at/af-compliant Power over Ethernet

The T1600G-28PS provides 24 10/100/1000Mbps RJ45 Ports that support 802.3at/af-compliant PoE, with a total PoE power supply up to 192W to power any 802.3at/af compliant power device. Compact and fl­exible, the T1600G-28PS is ideal to ­flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks.



Abundant L2 and L2+ features

T1600G-28PS supports a complete lineup of L2 features, including IGMP Snooping/ MLD Snooping, 802.1Q/MAC/ Protocol VLAN, STP/RSTP/MSTP, Link Aggregation Group(LAG), Port Isolation, Port Mirroring, and 802.3x Flow control function. IGMP Snooping ensures the multicast stream be forwarded intelligently to the appropriate subscribers by the switch, while IGMP Throttling & Filtering restricts each subscriber on a certain level to prevent unauthorized multicast access. Besides, T1600G-28PS also supports L2+ features like static routing. It is a simple way to provide segmentation of the network with internal routing through the switch and helps network traffic to be more efficient.



Advanced QoS Features

To integrate voice, data and video service on one network, the switch applies abundant QoS policies. Administrator can designate the priority of the traffic based on a variety of functions including Port Priority, 802.1P Priority and DSCP Priority, which can ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN that the switch supports, Voice Applications will perform better and smoother.



IPv6 Support

T1600G-28PS supports comprehensive IPv6 features including IPv6 management, ACL, QoS and MLD Snooping, all of these features help to ensure a smooth migration to IPv6-based network without changing switches in the future.



Enterprise Level Management Features

T1600G-28PS supports multiple user-friendly standard management features such as intuitive web-based Graphical User Interface (GUI), industrially standard Command Line Interface (CLI) and SNMP (v1/2/3). It supports RMON (Remote Network Monitoring), which enables the administrator to obtain valuable status information and also enables the switch to send traps when encountering abnormal events. Also, the switch supports Dual Image function, which makes there be less ‘down-time’ when switches are being upgraded/downgraded.


DONANIM ÖZELLİKLERİ
Standartlar ve Protokoller IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Arabirim 24 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
4 Gigabit SFP Slots
Ağ Medyası 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
1000BASE-X: MMF, SMF
Fan Sayısı 2
PoE+ Portları (RJ45) Standard: 802.3at/af compliant
PoE+ Ports: 24 Ports
Power Supply: 192W
Boyutlar ( W X D X H ) 17.3 * 8.7 * 1.73 in. (440 * 220 * 44 mm)
Montaj Rack Mountable
Maks. Güç Tüketimi 30.77W (110V/60Hz with no PD connected)
235.8W (110V/60Hz with 192W PD connected)
Max Heat Dissipation 104.99 BTU/h (with no PD connected)
804.55 BTU/h (with 192W PD connected)
PERFORMANS
Bandwidth/Backplane 56Gbps
Paket Yönlendirme Hızı 41.7Mpps
MAC Adres Tablosu 8K
Jumbo Frame 9KB
YAZILIM ÖZELLİKLERİ
Quality of Service Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
IPv6 QoS
Voice VLAN
L2 ve L2+ Özellikleri Static Routing
DHCP Relay
DHCP Server
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loopback detection
802.3x Flow Control
LLDP, LLDP-MED
VLAN Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
MAC/Protocol-based VLAN
Erişim Kontrol Listesi L2~L4 package filtering
MAC ACL
IP ACL
Combined ACL
IPv6 ACL
Güvenlik AAA
Port Security
DHCP Snooping
IP-MAC-Port Binding
IPv6-MAC-Port Binding
ARP Inspection
802.1x and Radius Authentication
SSH v1/v2
SSL v3/TLSv1
Broadcast/Multicast/Unknown-unicast Storm Control
Dos Defend
IPv6 Dual IPv4/IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 Uygulamaları DHCPv6 Client
Ping6
Tracert6
Telnet (v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP
Yönetim Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and
TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Dual Image
EEE
DİĞERLERİ
Sertifika CE, FCC, RoHS
Paket İçeriği T1600G-28PS
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
Sistem Gereksinimleri Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
Ortam Operating Temperature: 0?~40? (32?~104?);
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~90%RH non-condensing
