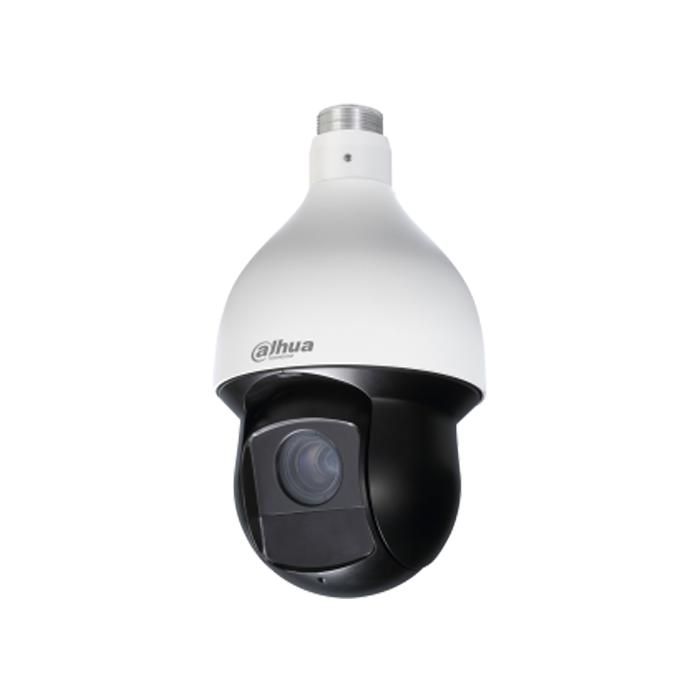

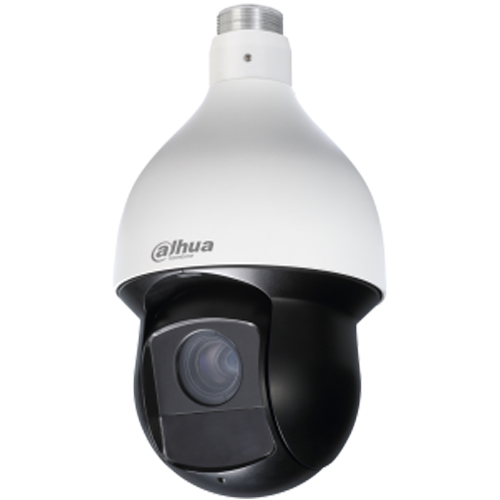

DAHUA (SD59430U-HNI) 1/3 CMOS 4MP 4.5-135MM 30X OPTIK IP66 POE METAL KASA IR PTZ IP KAMERA-100MT.

Ürün Kodu : 214
Marka : DAHUA
665.82 Dolar

TELEFONDA SİPARİŞ VER

0242 244 1 444

Tıklayın, telefonunuzu bırakın. Sizi arayalım.



  • Ürün Açıklaması
  • Ödeme Seçenekleri
  • Müşteri Yorumları (0)
  • Teslimat İade
4 MP H.265+ 30x Speed Dome Kamera(100m IR)
1 / 3 " CMOS, 4.5mm-135mm Lens, 0.005 Lüx Renkli
BLC/HLC/WDR(120dB), 3DNR, AWB, AGC, ICR, Defog, EIS, Auto Tracking(Oto-Takip)
Pan: 0° ~ 360° sonsuz; Tilt: -15° ~ 90°, 300 Preset, 5 Pattern , 8 Tur,
Tripwire(Sanal Sınır), Intrusion(Alan İhlali), Kayıp/Terkedilmiş Nesne Analizi, Yüz Algılama, Isı Haritası
IP66, PoE+, 25fps@4MP, Alarm Giriş/Çıkış: 2/1, Ses Giriş/Çıkış: 1/1, Metal Kasa
PFB300S(Duvar Montaj) ve PFA110(Montaj Aparatı), AC24/3A Adaptör Dahili
(PFA140, PFB300C, PFA120, PFA150, PFA151, PFB303S) Opsiyonel Montaj Aparatları

SD59430U-HNI

4MP 30x IR PTZ Network Camera

> 1/3” 4Megapixel CMOS
> Powerful 30x optical zoom
> H.265 Encoding
> Max. 25/30fps@4M/3M, 25/30/50/60fps@1080P
> Auto-tracking and IVS
> Support PoE+
> IR distance up to 100m
> IP66



Camera

Image Sensor

1/3” CMOS

Effective Pixels

2592(H) x 1520(V), 4 Megapixels

RAM/ROM

1024M/128M

Scanning System

Progressive

Electronic Shutter Speed

1/1s~1/30,000s

Minimum Illumination

Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6; 0Lux@F1.6 (IR on)

S/N Ratio

More than 55dB

IR Distance

Distance up to 100m (328ft)

IR On/Off Control

Auto/Manual

IR LEDs

4

Lens

Focal Length

4.5mm~135mm

Max. Aperture

F1.6 ~ F4.4

Angle of View

H: 60° ~ 2.2°

Optical Zoom

30x

Focus Control

Auto/Manual

Close Focus Distance

100mm~ 1000mm

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

Detect

Observe

Recognize

Identify

2700m(8858ft)

1080m(3543ft)

540m(1772ft)

270m(886ft)

PTZ

Pan/Tilt Range

Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180°

Manual Control Speed

Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s

Preset Speed

Pan: 400° /s; Tilt: 300° /s

Presets

300

PTZ Mode

5 Pattern, 8 Tour, Auto Pan ,Auto Scan

Speed Setup

Human-oriented focal Length/ speed adaptation

Power up Action

Auto restore to previous PTZ and lens status after power failure

Idle Motion

Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period

Protocol

DH-SD

Intelligence

Event Trigger

Motion detection, Video tampering , Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly

Auto Tracking

Support

IVS

Tripwire, Intrusion, Abandoned/Missing

Advanced Intelligent Functions

Face Detection, Heat Map

Video

Compression

H.265+/H.265/H.264+/H.264

Streaming Capability

3 Streams

Resolution

4M(2592×1520)/3M(2304×1296)/1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)

Frame Rate

Main stream: 4M/3M(1~25/30fps), 1080P/1.3M/ 720P(1~50/60fps)

Sub stream1: D1/CIF(1 ~ 25/30fps)

Sub stream2: 1080P/1.3M/720P/D1/CIF (1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.265/H.264: 448K ~ 8192Kbps

Day/Night

Auto(ICR) / Color / B/W

Backlight Compensation

BLC / HLC / WDR (120dB)

White Balance

Auto, ATW, Indoor, Outdoor, Manual

Gain Control

Auto / Manual

Noise Reduction

Ultra DNR (2D/3D)

Motion Detection

Support

Region of Interest

Support

Electronic Image Stabilization (EIS)

Support

Defog

Support

Digital Zoom

16x

Flip

180°

Privacy Masking

Up to 24 areas

Audio

Compression

G.711a/G.711Mu/AAC/G.722 / G.726/G.729/MPEG2-L2

Network

Ethernet

RJ-45 (10Base-T/100Base-TX)

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,

ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,

DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

20 users

Edge Storage

NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 256GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB,ANSI C63.4- 2014

UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Interface

Video Interface

N/A

RS485

N/A

Audio I/O

1/1

Alarm I/O

2/1

Electrical

Power Supply

AC24V/3A(±10%), PoE+(802.3at)

Power Consumption

13W,23W (IR on)

Environmental

Operating Conditions

-40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH

Ingress Protection

IP66

Vandal Resistance

N/A

Construction

Casing

Metal

Dimensions

Φ186(mm) x 309(mm)

Net Weight

3.9kg(8.60lb)

Gross Weight

7.2kg(15.87lb)
