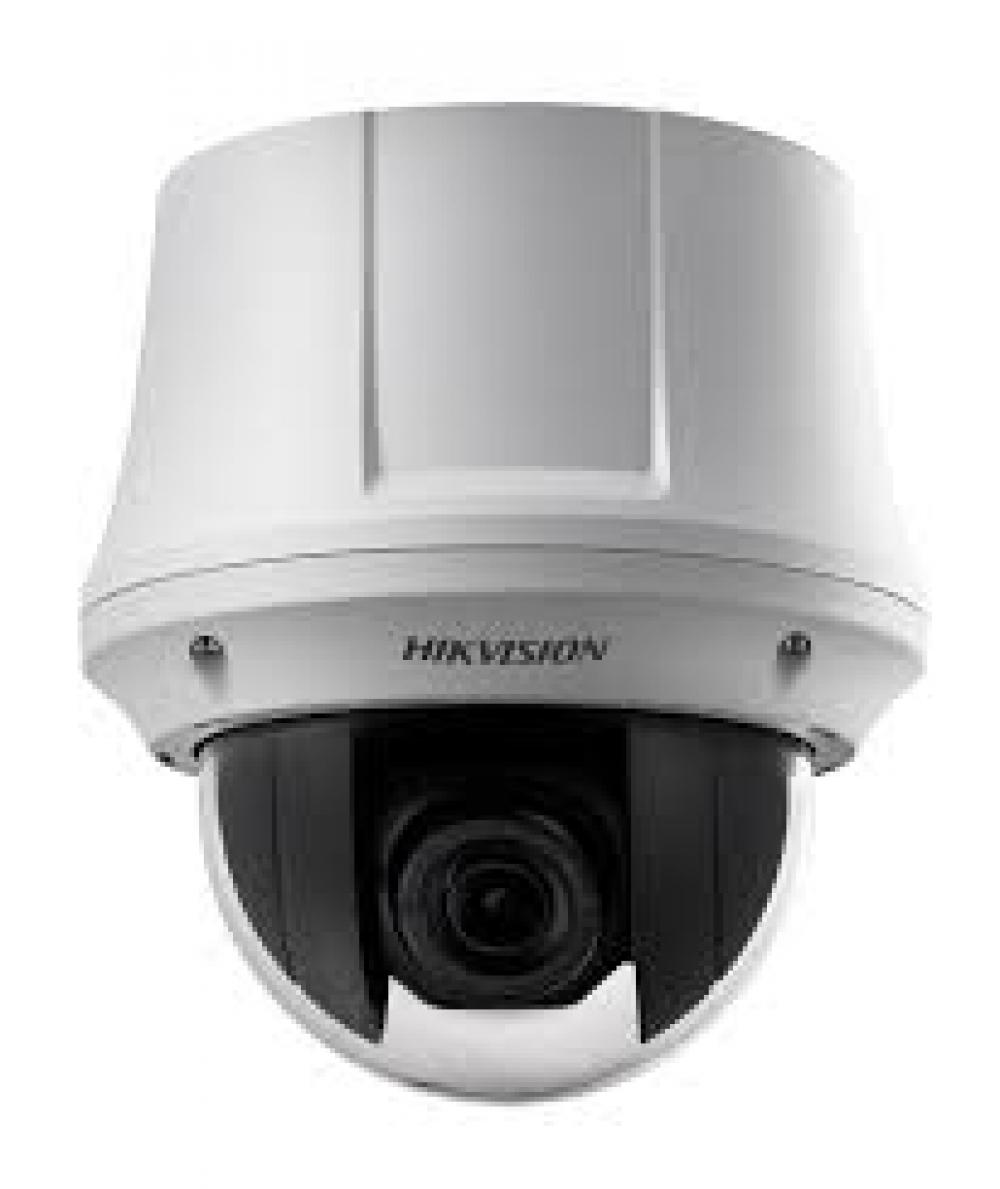

HAIKON (DS-2DE4225W-DE3) 2MP 1/2.8 25X H265 100MT IR DIŞ ORTAM PTZ KAMERA

Ürün Kodu : 14521
Marka : HAIKON - HIKVISION
341.08 Dolar

TELEFONDA SİPARİŞ VER

0242 244 1 444

Tıklayın, telefonunuzu bırakın. Sizi arayalım.



  • Ürün Açıklaması
  • Ödeme Seçenekleri
  • Müşteri Yorumları (0)
  • Teslimat İade

4-inch 2 MP 25X Powered by DarkFighter Network Speed Dome

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Clear imaging against strong back lighting thanks to 120 dB WDR technology
  • Pan and tilt ability enables camera to monitor zones of interest
  • 25x optical zoom allows for closer viewing of subjects in expansive areas
  • Kamera
  • Image Sensor  :  1/2.8" progressive scan CMOS
  • Min. Illumination  :  Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON)
  • Shutter Speed  :  1 s to 1/30,000 s
  • Slow Shutter  :  Yes
  • Day & Night  :  IR cut filter
  • Zoom  :  25x optical, 16x digital
  • Max. Resolution  :  1920 × 1080
  • Lens
  • Focus  :  Auto, semi-auto, manual
  • Focal Length  :  4.8 mm to 120 mm
  • Zoom Speed  :  Approx. 3.6 s
  • FOV  :

    Horizontal field of view: 57.6° to 2.5° (wide-tele),

    Vertical field of view: 34.4° to 1.4° (wide-tele),

    Diagonal field of view: 64.5° to 2.9° (wide-tele)

  • Aperture  :  Max. F1.6
  • PTZ
  • Movement Range (Pan)  :  360°
  • Movement Range (Tilt)  :  0° to 90°
  • Pan Speed  :  Pan speed: configurable from 0.1° to 160°/s; preset speed: 160°/s
  • Tilt Speed  :  Pan speed: configurable from 0.1° to 160°/s; preset speed: 160°/s
  • Proportional Pan  :  Yes
  • Presets  :  300
  • Patrol Scan  :  8 patrols, up to 32 presets for each patrol
  • Pattern Scan  :  4 pattern scans, record time over 10 minutes for each scan
  • Power-off Memory  :  Yes
  • Park Action  :  Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
  • 3D Positioning  :  Yes
  • PTZ Status Display  :  Yes
  • Preset Freezing  :  Yes
  • Scheduled Task  :  Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
  • Video
  • Main Stream

    50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)

    60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

    60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

  • Third Stream

    50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

    60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264

    Sub-stream: H.265/H.264/MJPEG

    Third stream: H.265/H.264/MJPEG

  • Video Bit Rate  :  32 kbps to 16384 kbps
  • H.264 Type  :  Baseline Profile/Main Profile/High Profile
  • H.265 Type  :  Main profile
  • Scalable Video Coding (SVC)  :  H.264 and H.265 encoding
  • Region of Interest (ROI)  :  8 fixed regions for each stream
  • Audio
  • Audio Compression  :  G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
  • Audio Bit Rate  :  MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps
  • Audio Sampling Rate  :  MP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
  • Environment Noise Filtering  :  Yes
  • Network
  • Network Storage  :  NAS (NFS, SMB/CIFS)
  • Protocols  :  IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
  • API  :  Open Network Video Interface, ISAPI, SDK, ISUP
  • Simultaneous Live View  :  Up to 20 channels
  • User/Host  :  Up to 32 users; 3 user levels: administrator, operator, and user
  • Security  :  Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
  • Client  :  iVMS-4200, HikCentral Pro, Hik-Connect
  • Web Browser  :  IE10-11, Chrome 57.0+, Firefox 52.0+, Safari 11+
  • Image
  • Day/Night Switch  :  Day, Night, Auto, Schedule
  • Image Enhancement  :  BLC, HLC, 3D DNR
  • Wide Dynamic Range (WDR)120 dB
  • Defog  :  Digital defog
  • Regional Exposure  :  Yes
  • Regional Focus  :  Yes
  • Image Settings  :  Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • Image Parameters Switch  :  Yes
  • Privacy Mask  :  24 programmable polygon privacy masks, mask color or mosaic configurable
  • SNR>52dB
  • Interface
  • Ethernet Interface  :  1 RJ45 10M/100M self-adaptive Ethernet port
  • On-board Storage  :  Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
  • Alarm  :  1alarm input, 1 alarm output
  • Audio  :  1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
  • SIFIRLA  :  Yes
  • Event
  • Basic Event  :  Video tampering alarm, motion detection, alarm input, alarm output, exception
  • Smart Event  :  Face detection, line crossing detection, region entrance detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, audio exception detection
  • Alarm Linkage  :  Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
  • General
  • Power  :  12 VDC, 2.0 A, max. 18 W; PoE (802.3 at)
  • Operating Condition  :  -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
  • Material ADC 12, PC+ABS, PC/PMMA
  • Dimension  :  Ø 165 mm × 179.5 mm (Ø 6.5" × 7.1")
  • Approx. 2 kg (4.41 lb.)
  • Approval
  • EMC

    FCC (47 CFR Part 15, Subpart B);

    CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);

    RCM (AS/NZS CISPR 32: 2015);

    IC (ICES-003: Issue 7);

    KC (KN 32: 2015, KN 35: 2015)

  • Safety

    UL (UL 62368-1)

    CB (IEC 62368-1:2014+A11);

    CE-LVD (EN 62368-1:2014+A11:2017),

    BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005);

    LOA (IEC/EN 60950-1)

  • Environment

    CE-RoHS (2011/65/EU);

    WEEE (2012/19/EU);

    Reach (Regulation (EC) No 1907/2006)

  • Protection  :  IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection
