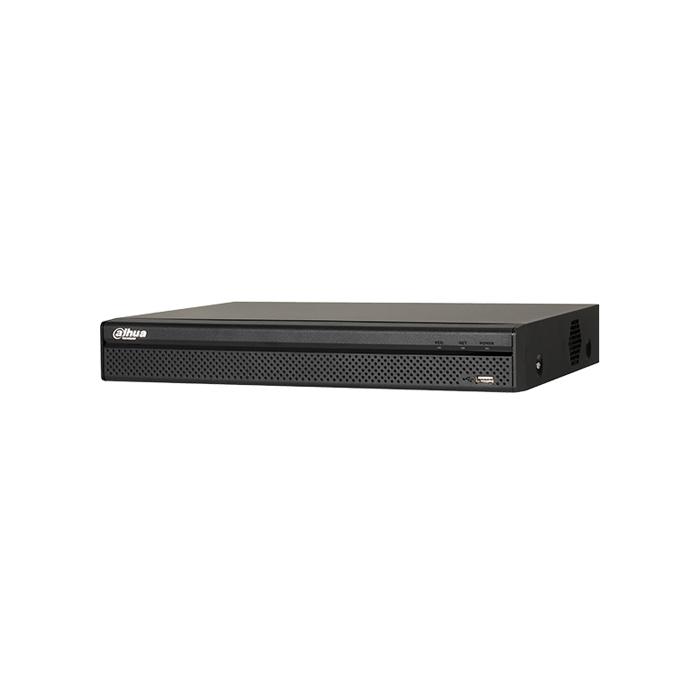

DAHUA (XVR5104H-I) 4 KANAL 1080P 1x6TB 5MP HDCVI/AHD/TVI/CVBS/IP HDMI,VGA,USB,RJ45H265+XVR KAYIT

Ürün Kodu : 489
Marka : DAHUA
81.00 Dolar

TELEFONDA SİPARİŞ VER

0242 244 1 444

Tıklayın, telefonunuzu bırakın. Sizi arayalım.



  • Ürün Açıklaması
  • Ödeme Seçenekleri
  • Müşteri Yorumları (0)
  • Teslimat İade
4 Kanal H.265+ XVR (1x6TB SATA)
Maks. 5 MP'ye kadar HDCVI kamera destekler
Kayıt Hızı:
 Tüm kanallarda 5M-N(1~10fps); 4M-N/1080P(1~15fps); 1080N/720P/960H/D1/CIF (1~25/30fps)
HDCVI/AHD/TVI/CVBS/IP video girişlerini destekler
IP Kamera Girişi: 4+2, her kanal 6MP'ye kadar, 24Mbps Bant Genişliği
Ses Giriş/Çıkış: 1/1 ayrıca Dahili Mikrofonlu HDCVI Kamera ile 4 Kanalda Ses
Çevre Koruması ve SMD Plus(Yüksek doğrulukta alarm verir ve alarmları kişi/araç şeklinde sınıflandırabilir)
Akıllı Arama: Bu özellik sayesinde kayıtlar, insan/araç şeklinde sınıflandırılarak aratılabilir.

1 HDMI, 1 VGA, 2 USB, 1 RJ45 port(10/100Mbps), P2P(Buluttan İzleme)



XVR5104H-I

4 Channel Penta-brid 1080P Mini 1U Digital Video Recorder

> H.265+/H.265 dual-stream video compression
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 6 channels IP camera inputs, each channel up to 6MP; Max 24Mbps incoming bandwidth
> Perimeter Protection and SMD Plus



System

Main Processor

Embedded Processor

Operating System

Embedded LINUX

Perimeter Protection

Perimeter protection

1.AI by DVR: Detection alarm for human and vehicle. Filter misinformation such as leaves and light.
2.Function configuration: Set at most 10 rules such as area intrusion and tripwire intrusion.
3.Performance: 2 channels

Live View

1. Rule box inspection: Configure the rule box and object inspection box.

2.Smart panel: Display object classification (human, vehicle), event types, triggering time, image matting and object types. Attribute is not supported.

3. Counting: Count people in Peopletotal. Count motor vehicles in Vehicle. Support exporting of associated event playback before and after 10 seconds.

Playback

1. Search conditions: According to channels, time, event types and target types.

2.Functions: Support search of associated event playback or snapshot before and after 10 seconds.

3. Snapshot capacity: 500,000

SMD Plus

SMD Plus

1. AI by DVR: Motion detection alarm for human and vehicle. Filter misinformation such as leaves and light.

2. Performance: 4 channels , AI by DVR

Preview

Preview: Configure and inspect detection box

Playback

1.Playback: Search videos through channels, time and target types.
2.Functions: Support search of associated event playback before and after 10 seconds.

Video and Audio

Analog Camera Input

4 Channel, BNC

HDCVI Camera

5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps

AHD Camera

5MP, 4MP, 1080P@25/30, 720P@25/30fps

TVI Camera

5MP, 4MP, 1080P@25/30, 720P@25/30fps

CVBS Camera

PAL/NTSC

IP Camera Input

4+2 Channel, each channel up to 6MP

Audio In/Out

1/1, RCA

Two-way Talk

Reuse audio in/out, RCA

Recording

Compression

H.265+/H.265/H.264+/H.264

Resolution

5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF

Record Rate

Main stream: All channel 5M-N(1~10fps); 4M-N/1080P(1~15fps); 1080N/720P/960H/

D1/CIF (1~25/30fps)

Sub stream: D1/CIF(1~15fps)

Bit Rate

32Kbps ~ 6144Kbps Per Channel

Record Mode

Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval

1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Audio Compression

AAC(only for the 1st channel), G.711A, G.711U, PCM

Audio Sample Rate

8KHz, 16 bit Per Channel

Audio Bit Rate

64Kbps Per Channel

Display

Interface

1 HDMI ,1 VGA

Resolution

1920×1080, 1280×1024, 1280×720

Multi-screen Display

When IP extension mode not enabled: 1/4

When IP extension mode enabled: 1/4/8

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network

Interface

1 RJ-45 Port (100M)

Network Function

HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 16.12, CGI Conformant

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis

Alarm input

N/A

Relay Output

N/A

Playback and Backup

Playback

1/4

Search Mode

Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Storage

Internal HDD

1 SATA Port, up to 6TB capacity

eSATA

N/A

Auxiliary Interface

USB

2 USB 2.0

RS232

N/A

RS485

1 Port, for PTZ Control

Electrical

Power Supply

DC12V/1.5A

Power Consumption

(Without HDD)

<10W

Construction

Dimensions

Mini 1U, 325mm×255mm×55mm (12.8" x 10" x 2.2")

Net Weight

(without HDD)

1.0kg (2.2lb)

Gross Weight

1.9kg (4.2lb)

Installation

Desktop installation

Environmental

Operating Conditions

-10°C ~ +45°C (+14°F ~ +113°F), up to 55°C/131°F with case fan, 10~ 90% RH

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH

Third-party Support

Third-party Support

Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Certifications

Certifications

FCC: Part 15 Subpart B

CE: CE-LVD: EN 60950-1/IEC 60950-1

CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
