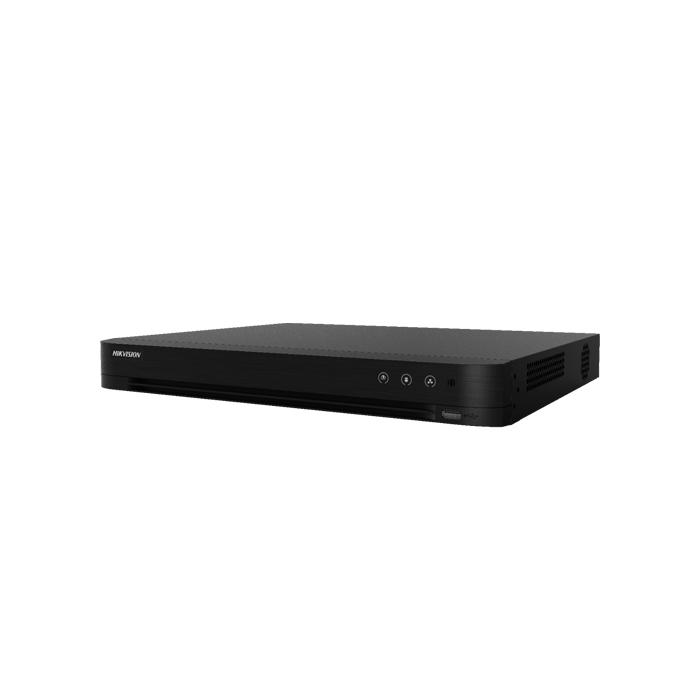

HAIKON (DS-7216HQHI-M2/S) 16 KANAL 2xSES 1xHDMI 1xVGA 2x10TB 8xIP HD-TVI HIBRIT KAYIT H265+PLUS

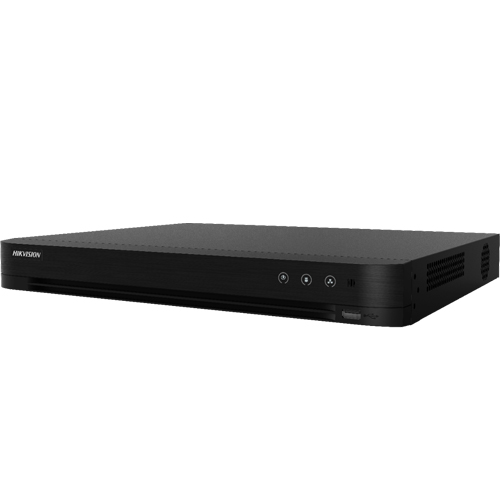

16-ch 1080p 1U H.265 AcuSense DVR

• 16 channels and 2 HDDs 1U AcuSense DVR
• Provides detailed information with face detection
• False alarm reduction through human and vehicle target classification based on deep learning
• Efficient H.265 pro+ compression technology
• Encoding ability up to 1080p @ 15 fps
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Up to 8 network cameras can be connected

• Encoding resolution

  Main stream:

       When 1080p Lite mode not enabled:

       For 4 MP stream access:

       4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

       For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps

       For 1080p stream access:

       1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

       For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

       When 1080p Lite mode enabled:

       4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

  Sub-stream:

       WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)

• Video bit rate  :   32 Kbps to 6 Mbps
• Video compression  :   H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Dual stream  :   Support
• Stream type  :   Video, Video & Audio
• Audio compression  :   G.711u
• Audio bit rate  :   64 Kbps

• Video and Audio
• Audio input  :   1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio output  :   1-ch, RCA (Linear, 1 KΩ)
• Synchronous playback  :   16-ch
• IP video input  :   4-ch (up to 12-ch);Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
• HDTVI input

       3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps

       *: The 3 MP signal input is only available for channel 1/2 of iDS-7208HQHI-M2/S, and for channel 1/2/3/4 of iDS-7216HQHI-M2/S.



• HDCVI input  :   4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• CVBS input  :   PAL/NTSC
• Two-way audio  :   1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Analog video input  :   16-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• AHD input  :   4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• CVBS output

       1-ch, BNC (1.0 Vp-p, 75 Ω),

       resolution: PAL: 704 × 576, NTSC: 704 × 480

• HDMI/VGA output

       1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

       1024 × 768/60Hz, HDMI/VGA simultaneous output



• Network
• Network protocols  :   TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Remote connections  :   128
• Network interface

       1,RJ45 10M/100M/1000M self-adaptive

       Ethernet interface

• Auxiliary interface
• Capacity  :   Up to 10 TB capacity for each disk
• Serial interface  :   RS-485 (half-duplex)
• USB interface

       1 × USB 2.0;

       1 × USB 3.0

• Alarm in/out  :   N/A
• SATA  :   2 SATA interface

• General
• Consumption(without HDD)  :   ≤ 40 W
• Working humidity  :   10% to 90%
• Power supply  :   12 VDC
• Working temperature  :   -10 °C to +55 °C (+14 °F to +131 °F)
• Dimensions(W × D × H)  :   380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
• Weights (without HDD)  :   ≤ 2 kg (4.4 lb)
