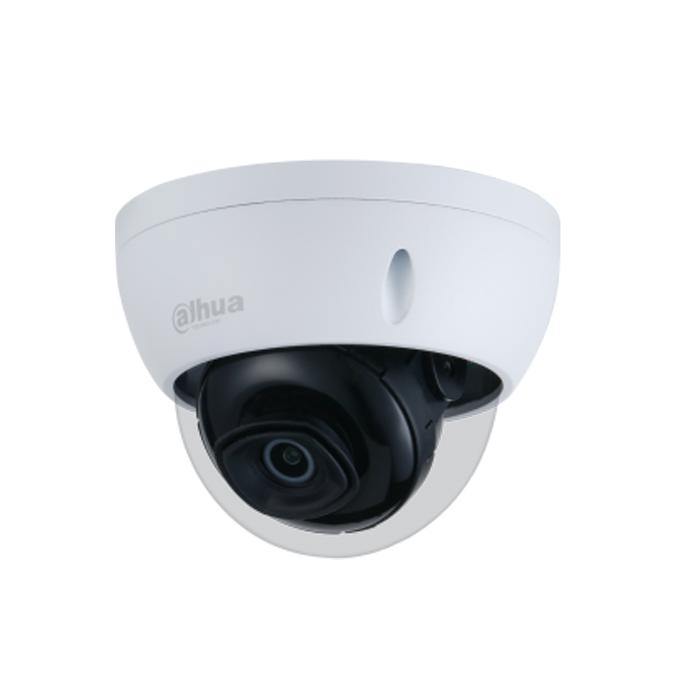

2 MP H.265+ IR Dome Starlight Kamera(30m IR)
1 / 2.8 " CMOS, 2.8mm Sabit Lens, 0.002 Lüx Renkli
BLC/HLC/WDR(120dB), 3DNR, AWB, AGC, ICR, SD Kart Desteği(256GB)
Tripwire(Sanal Sınır),Intrusion(Alan İhlali) Analiz
IP67, IK10, PoE, 25fps@2MP(1920x1080), Metal Kasa |

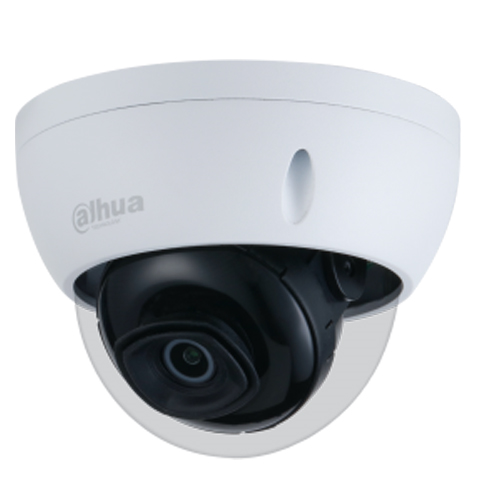

IPC-HDBW2231E-S-S2
2MP WDR IR Mini Dome Network Camera
> 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
> Outputs 2MP (1920 × 1080) @ 25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate
> Built-in IR LED, max IR distance: 30 m
> ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Intelligent detection: Intrusion, tripwire · Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
> Supports max. 256 GB Micro SD card
> 12V DC/PoE power support
> IP67, IK10 protection grade
|
Camera
|
|
Image Sensor
|
1/2.8”2Megapixel progressive CMOS
|
|
Effective Pixels
|
1920 (H) ×1080 (V)
|
|
ROM
|
128 MB
|
|
RAM
|
128 MB
|
|
Scanning System
|
Progressive
|
|
Electronic Shutter Speed
|
Auto/Manual 1/3 s–1/100000 s
|
|
Min. Illumination
|
0.002 Lux @F1.6
|
|
IR Distance
|
30 m (98.4 ft)
|
|
IR On/Off Control
|
Auto/Manual
|
|
IR LEDs Number
|
3
|
|
Pan/Tilt/Rotation Range
|
Horizonal: 0°–355°
Vertical: 0°–65°
Rotation: 0°–355°
|
|
Lens
|
|
Lens Type
|
Fixed
|
|
Mount Type
|
M12
|
|
Focal Length
|
2.8 mm
3.6 mm
|
|
Max. Aperture
|
F1.6
|
|
Field of View
|
2.8 mm:
Horizontal:106°
Vertical: 56°
Diagonal: 126°
3.6 mm:
Horizontal:87°
Vertical: 46°
Diagonal: 104°
|
|
Iris Type
|
Fixed aperture
|
|
Close Focus Distance
|
2.8 mm: 0.6 m (2.0 ft)
3.6 mm: 1.2 m (3.9 ft)
|
|
DORI Distance
|
Lens
|
Detect
|
Observe
|
Recognize
|
Identify
|
|
2.8 mm
|
38.6 m
(126.6 ft)
|
15.4 m
(50.5 ft)
|
7.7 m
(25.3 ft)
|
3.9 m
(12.8 ft)
|
|
3.6 mm
|
55.2 m
(181.1 ft)
|
22.1 m
(72.5 ft)
|
11.0 m
(36.1 ft)
|
5.5 m
(18.0 ft)
|
|
Smart Event
|
|
General IVS Analytics
|
Intrusion; tripwire
|
|
Video
|
|
Video Compression
|
H.265; H.264; H.264B; MJPEG
|
|
Smart Codec
|
Yes
|
|
Video Frame Rate
|
Main stream:
1920 × 1080 (1 fps-25/30 fps)
Sub stream:
704 × 576 (1 fps-25fps)
704 × 480 (1 fps-30fps)
|
|
Stream Capability
|
2 streams
|
|
Resolution
|
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
|
|
Bit Rate Control
|
CBR/VBR
|
|
Video Bit Rate
|
H.264: 32 Kbps–6144 Kbps
H.265: 12 Kbps–6144 Kbps
|
|
Day/Night
|
Auto(ICR)/Color/B/W
|
|
BLC
|
Yes
|
|
HLC
|
Yes
|
|
WDR
|
120 dB
|
|
White Balance
|
Auto/natural/street lamp/outdoor/manual/regional custom
|
|
Gain Control
|
Auto/Manual
|
|
Noise Reduction
|
3D DNR
|
|
Motion Detection
|
OFF/ON (4 areas, rectangular)
|
|
Region of Interest(RoI)
|
Yes (4 areas)
|
|
Smart IR
|
Yes
|
|
Image Rotation
|
0°/90°/180°/270° (Support 90°/270° with 1080p resolution.)
|
|
Mirror
|
Yes
|
|
Privacy Masking
|
4 areas
|
|
Network
|
|
Network
|
RJ-45 (10/100 Base-T)
|
|
Protocol
|
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour
|
|
Interoperability
|
ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec
|
|
User/Host
|
20
|
|
Edge Storage
|
Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS
|
|
Browser
|
IE
Chrome
Firefox
|
|
Management Software
|
Smart PSS; DSS; DMSS
|
|
Mobile Phone
|
IOS; Android
|
|
Certification
|
|
Certifications
|
CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
|
|
Power
|
|
Power Supply
|
12V DC/PoE (802.3af)
|
|
Power Consumption
|
< 5.4W
|
|
Environment
|
|
Operating Conditions
|
-40°C to +60°C (-40°F to +140°F)/less than ≤ 95%
|
|
Storage Temperature
|
-40°C to +60°C (-40°F to +140°F)
|
|
Protection Grade
|
IP67, IK10
|
|
Structure
|
|
Casing
|
Metal
|
|
Dimensions
|
81 mm × Φ109.9 mm (3.2" × Φ4.3")
|
|
Net Weight
|
0.35 kg (0.77lb)
|
|
Gross Weight
|
0.48 kg (1.06lb)
|
