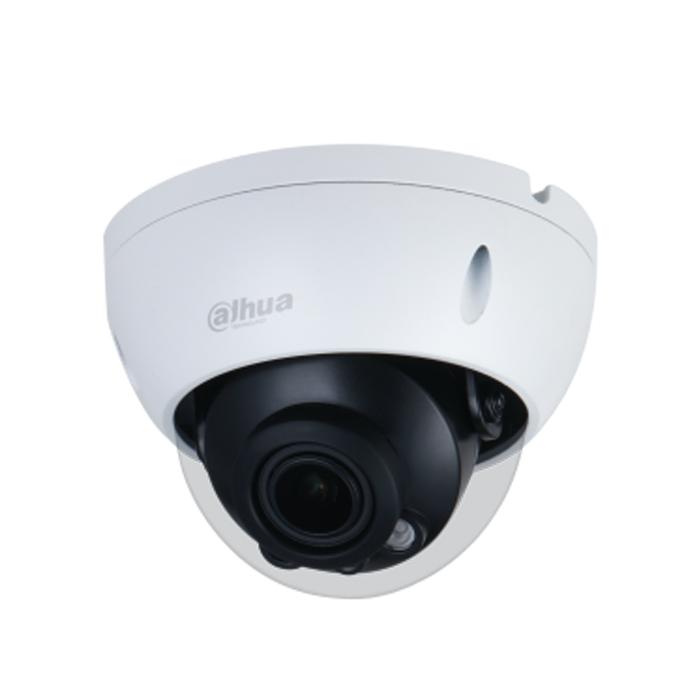

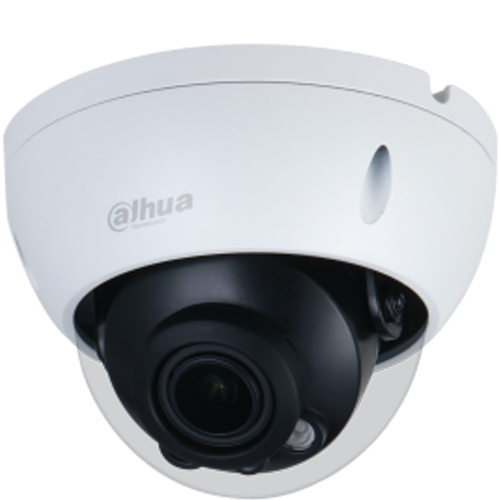

4 MP H.265+ IR Dome Kamera(30m IR)
1 / 3 " CMOS, 2.7mm-13.5mm Motorize Lens, 0.03 Lüx Renkli
BLC/HLC/WDR(120dB), 3DNR, AWB, AGC, ICR
Tripwire(Sanal Sınır), Intrusion(Alan İhlali)
IP67, IK10, PoE, 20fps@4MP, Metal Kasa
4MP WDR IR Dome Network Camera
> 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
> Outputs 4MP (2560 × 1440)@25/30 fps, Max. supports 4MP (2688 × 1520)@20 fps
> H.265 coding, high compression ration, low bit rate
> Built-in IR LED, max IR distance: 40 m
> ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Intelligent detection: Intrusion, tripwire
> Abnormality detection: Motion detection, video tempering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
> Max. 256 GB SD card
> 12V DC/POE power support
|
Camera
|
|
Image Sensor
|
1/3” CMOS
|
|
Effective Pixels
|
2688 (H) × 1520 (V)
|
|
ROM
|
128 MB
|
|
RAM
|
128 MB
|
|
Scanning System
|
Progressive
|
|
Electronic Shutter Speed
|
Auto/Manual 1/3 s–1/100000 s
|
|
Min. Illumination
|
0.01 Lux @ F1.5
|
|
IR Distance
|
40 m (131.23 ft) (IR)
|
|
IR On/Off Control
|
Auto/Manual
|
|
IR LEDs Number
|
2 (IR LED)
|
|
Pan/Tilt/Rotation Range
|
Horizonal: 0°–355°
Vertical: 0°–67°
Rotation: 0°–355°
|
|
Lens
|
|
Lens Type
|
Motorized vari-focal
|
|
Mount Type
|
φ14
|
|
Focal Length
|
2.7 mm–13.5 mm
|
|
Max. Aperture
|
F1.5
|
|
Field of View
|
Horizonal: 104°–27°
Vertical: 55°–15°
Diagonal: 124°–31°
|
|
Optical Zoom
|
5 times
|
|
Iris Type
|
Fixed
|
|
Close Focus Distance
|
0.8m–0.8m (2.62 ft–2.62 ft)
|
|
DORI Distance
|
Lens
|
Detect
|
Observe
|
Recognize
|
Identify
|
|
W
|
64 m
(209.97 ft)
|
25.6 m
(83.99 ft)
|
12.8 m
(41.99 ft)
|
6.4 m
(21 ft)
|
|
T
|
220 m
(721.78 ft)
|
88 m
(288.71 ft)
|
44 m
(144.36 ft)
|
22 m
(72.18 ft)
|
|
Smart Event
|
|
General IVS Analytics
|
Intrusion; tripwire
|
|
Video
|
|
Video Compression
|
H.265; H.264; H.264B; MJPEG
|
|
Smart Codec
|
H.264: Yes
H.265: Yes
|
|
Video Frame Rate
|
50Hz
Main stream (2560 × 1440@25 fps); sub stream (704 × 576@25 fps)
Main stream (2688 × 1520@20 fps); sub stream (704 × 576@20 fps)
60Hz
Main stream (2560 × 1440@30 fps); sub stream (704 × 480@30 fps)
Main stream (2688 × 1520@20 fps); sub stream (704 × 480@20 fps)
|
|
Stream Capability
|
Main stream; sub stream
|
|
Resolution
|
2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 ×480); CIF (352 × 288/352 × 240)
|
|
Bit Rate Control
|
CBR/VBR
|
|
Video Bit Rate
|
H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps
|
|
Day/Night
|
ICR switch
|
|
BLC
|
Yes
|
|
WDR
|
120 dB
|
|
White Balance
|
Auto/natural/street lamp/outdoor/manual/regional custom
|
|
Gain Control
|
Auto/Manual
|
|
Noise Reduction
|
3D DNR
|
|
Motion Detection
|
Disable/Enable (4 areas, rectangle)
|
|
Region of Interest(RoI)
|
Yes (4 areas)
|
|
Smart IR
|
Yes
|
|
Image Rotation
|
0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution.)
|
|
Mirror
|
Yes
|
|
Privacy Masking
|
4 areas
|
|
Network
|
|
Network
|
RJ-45 (10/100 Base-T)
|
|
Protocol
|
HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP;IGMP
|
|
Interoperability
|
ONVIF (Profile S/Profile G); CGI; Milestone; Genetec
|
|
User/Host
|
20
|
|
Edge Storage
|
Dahua Cloud; FTP; Micro SD card (max. 256 GB); NFS
|
|
Browser
|
IE
Google
Firefox
|
|
Management Software
|
Smart PSS; DSS; DMSS
|
|
Mobile Phone
|
IOS; Android
|
|
Certification
|
|
Certifications
|
CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
|
|
Power
|
|
Power Supply
|
12V DC/POE
|
|
Power Consumption
|
Basic power consumption: 1.9W (12V DC); 2.8W (POE)
Max power consumption: (H.265, Max resolution, Max stream, WDR, IR full intensity, IVS): 5.6W (12V DC), 6.5W (POE)
|
|
Environment
|
|
Operating Temperature
|
-30°C to +60°C (-22°F to +140°F)
|
|
Operating Humidity
|
≤95%
|
|
Storage Temperature
|
-40°C to +60°C (-40°F to +140°F)
|
|
Storage Humidity
|
≤95%
|
|
Protection Grade
|
IP67, IK10
|
|
Structure
|
|
Casing
|
Metal
|
|
Dimensions
|
Φ122 mm × 88.9 mm (Φ4.80" × 3.50")
|
|
Net Weight
|
0.47 kg (1.04 lb)
|
|
Gross Weight
|
0.63 kg (1.39 lb)
|
