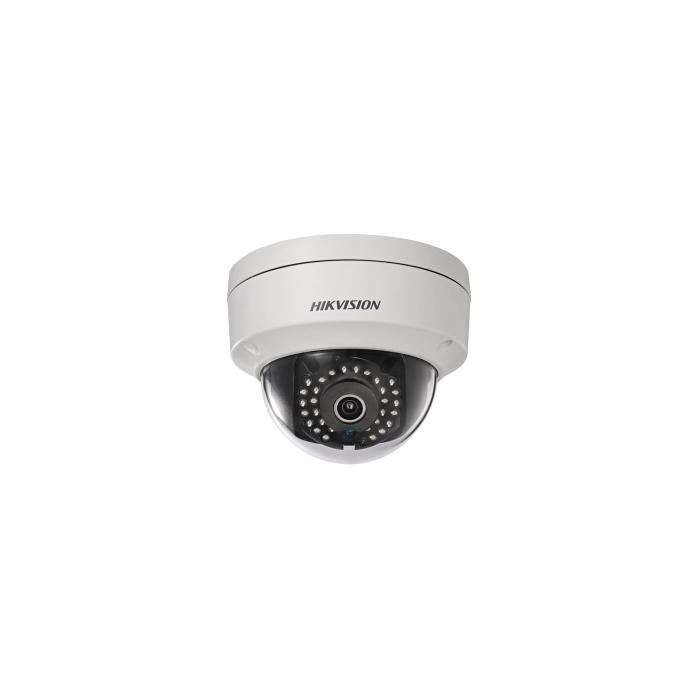

HAIKON (DS-2CD2121G0-IS) 2MP 2.8MM LENS POE MINI IR IP DOME KAMERA-20MT.(H.265+,SES GİR)

DS-2CD2121G0-I(W)(S)/2AX

2 MP IR Fixed Dome Network Camera

• 1/2.8" Progressive Scan CMOS
• 1920 × 1080@30fps
• 2.8/4/6 mm fixed lens
• Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @(F2.0, AGC ON)
• H.265+, H.265, H.264+, H.264
• Digital WDR
• 2 Behavior analyses
• BLC/3D DNR/ROI
• Built-in micro SD/SDHC/SDXC card slot, up to 128 GB

• Image Sensor 1/2.8" Progressive Scan CMOS
• Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @(F2.0, AGC ON); B/W: 0.001 Lux @(F1.2, AGC ON), 0.0028 Lux @(F2.0, AGC ON), 0 Lux with IR
• Shutter Speed 1/3 s to 1/100,000 s
• Slow Shutter Yes
• Auto-Iris No
• Day & Night IR Cut Filter
• Digital Noise Reduction 3D DNR
• Wide Dynamic Range DWDR
• Angle of adjustment Pan: 0° to 355°, tilt: 0° to 70°

Lens

• Focal Length 2.8/4/6 mm
• Aperture F2.0
• Focus No
• FOV 2.8 mm: horizontal FOV: 115°, vertical FOV: 62°, diagonal FOV: 136° 4 mm: horizontal FOV: 86°, vertical FOV: 47°, diagonal FOV: 103° 6 mm: horizontal FOV: 55°, vertical FOV: 31°, diagonal FOV: 62°
• Lens Mount M12

IR

• IR Range 2.8 mm, 4 mm: 20 meters 6 mm: 30 meters
• Wavelength 850nm

Compression Standard

• Video Compression Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG
• H.264 Type Baseline Profile/Main Profile/High Profile
• H.264+ Main stream supports
• H.265 Type Main Profile
• H.265+ Main stream supports
• Video Bit Rate 32 Kbps to 8 Mbps
• Audio Compression (-S) G.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate (-S) 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Smart Feature-set

• Behavior Analysis Line crossing detection, intrusion detection
• Region of Interest 1 fixed region for main stream


• Max. Resolution 1920 × 1080
• Main Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-Stream 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240
• Image Enhancement BLC/3D DNR
• Image Settings Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
• Target Cropping No
• Day/Night Switch Day/Night/Auto/Schedule/Triggered by alarm in (-S)

Network

• Network Storage Support built-in micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
• Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
• Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
• General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Firmware Version V5.5.3
• API ONVIF (PROFILE S, PROFILE G), ISAPI
• Simultaneous Live View Up to 6 channels
• User/Host Up to 32 users 3 levels: Administrator, Operator and User
• Client iVMS-4200, Hik-Connect, iVMS-5200
• Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Interface

• Audio (-S) 1 input (line in), 1 output (line out), mono sound
• Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
• Alarm (-S) 1 input, 1 output
• Video Output No
• On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB
• SVC No
• Reset Button Yes

Wi-Fi

• Wireless Standards IEEE 802.11b/g/n
• Frequency Range 2.4 GHz to 2.4835 GHz
• Channel Bandwidth 20/40MHz
• Protocols 802.11b: DQPSK, DBPSK, CCK 802.11g/n: 64-QAM, 16-QAM, QPSK, BPSK
• Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
• Transfer Rates 11b: 11Mbps, 11g: 54Mbps, 11n: 65Mbps
• Wireless Range 50 m

Audio (-S)

• Environment Noise Filtering Yes
• Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

General

• Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
• Power Supply 12 VDC ± 25%, PoE (802.3af, class 3)
• Power Consumption and Current PoE: (802.3af, 36V-57V), 0.2 A to 0.1 A, max. 6.5W 12 VDC, 0.4 A, max. 5W
• Protection Level IP67
• Material Front cover: plastic, base: metal
• Dimensions Camera: Φ 111 × 82.4 mm (Φ 4.4" × 3.2") With package: 135× 135 × 110 mm (5.3" × 5.3" × 4.3")
• Weight Camera: approx. 400 g (0.9 lb.) With package: approx. 500 g (1.1 lb.)
